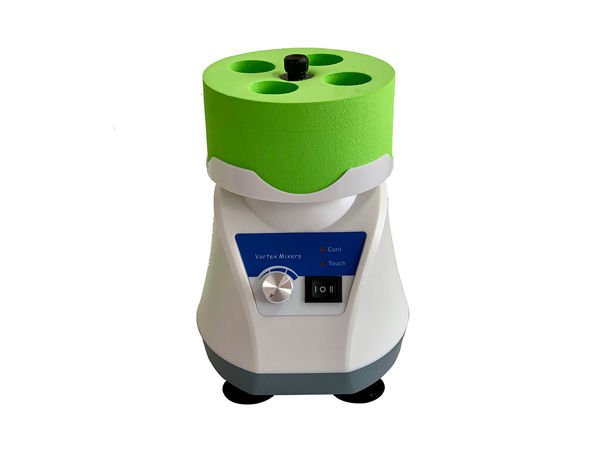

Mini Mixer
This Mini Mixer is used in the fields of life science and physical and chemical analysis, and is used for the shaking, mixing and stirring of sample tissues, cells, bacterial liquid, chemical reagents, etc. A variety of adapters can be used for 0.2-50ml microtubes and test tubes or small containers with a diameter less than 108mm.
Technical Specification
| Model |
VORTEX-7 |
| Operation display mode |
Knob + scale |
| Circumference diameter |
3mm |
| Oscillation mode |
Circumference |
| Operation mode |
Continuous operation or jog |
| Speed range |
0-2500rpm |
| Timing range |
/ |
| Input power |
AC 220V / AC 110V, 50/60Hz |
| Power |
60W |
| Fuse |
250V, 1A, Φ5x20 |
| Dimensions |
W.134 x D.156 x H.150mm |
| Net weight |
2.4kg |
| Optional accessories |
X1-X3 standard configuration; X4-X9 optional one |
Optional accessories table
| odename |
Description |
| X1 |
Standard head, used for test tubes and small containers with a diameter less than 30mm |
| X2 |
Standard plastic tray |
| X3 |
Tray gasket, used in conjunction with the standard plastic tray, used for test tubes or small containers with a diameter less than 108mm |
| X4 |
Foam module, used with the standard plastic tray, used to place 0.2ml test tubes, pore size Φ5mm×89 pcs |
| X5 |
Foam module, used in conjunction with the standard plastic tray, used to place 0.5ml test tubes, pore size Φ6.6mm×37 pcs |
| X6 |
Foam module, used in conjunction with the standard plastic tray, used to place 1.5/2.0ml test tubes, pore size Φ9.8mm×24 |
| X7 |
Foam module, used in conjunction with the standard plastic tray, used to place 15ml test tubes, pore size Φ14mm×8 |
| X8 |
Foam module, used in conjunction with the standard plastic tray, used to place 50ml test tubes, pore size Φ26.2mm×4 |
| X9 |
Microplate tray, used to place various microplates, deep well plates, etc. |
|
