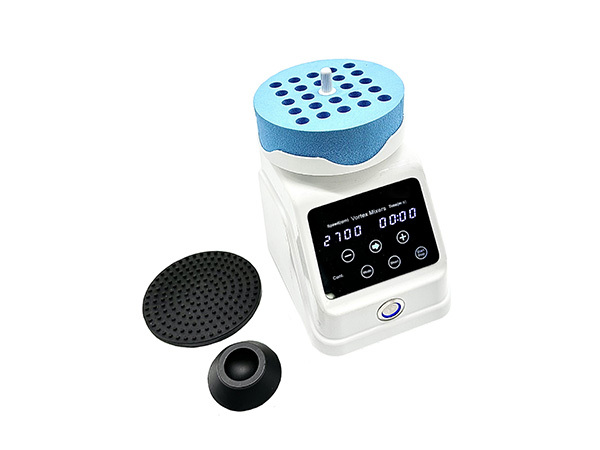

Vortex mixer
Applicable field
This vortex mixer is used in the field of life sciences and physical and chemical analysis for oscillating, mixing and stirring of sample tissues, cells, bacterial fluids, chemical reagents, etc. A variety of adapters are available for 0.2-2ml microtubes.
Technical Specification
| Fitting drawing |
Number |
Description |
 |
HS-A |
Standard head for test tubes and small containers less than 30mm in diameter |
 |
HS-B |
Flat gasket with standard tray for test tubes or small containers less than 108mm in diameter |
 |
HS-C |
The foam module is used in conjunction with the standard tray for placing 1.5/2.0ml test tubes with a diameter of 9.8mmx24 |
 |
HS-D |
Foam module, used with standard tray, is used to hold 0.2ml test tubes with diameter φ5mmx96 |
 |
HS-E |
Foam module, used in combination with standard tray, for holding 1.5/2.0ml/0.5/0.2ml test tubes with diameters of 9.8x12, 6.6x12, φ5x12 |
 |
HS-F |
Foam module, used together with standard tray, for placing 15ml test tubes, diameter φ14mmx8 (set speed≤1900rpm) |
 |
HS-G |
Foam module, used with standard tray, for placing 50ml test tubes, diameter φ26.2mmx4 (set speed ≤1900rpm) |
 |
HS-H |
Microporous plate tray, used to place a variety of microporous plate, deep hole plate, etc |
 |
HS-I |
(universal tray) 384 well PCR plate, microporous plate and deep-hole plate can be directly mixed without stent |
 |
HS-J |
Standard pallet |
 |
HS-k |
The foam module is used together with the standard tray for placing 0.5ml test tubes with a diameter of φ6.6mmx48 |
|
