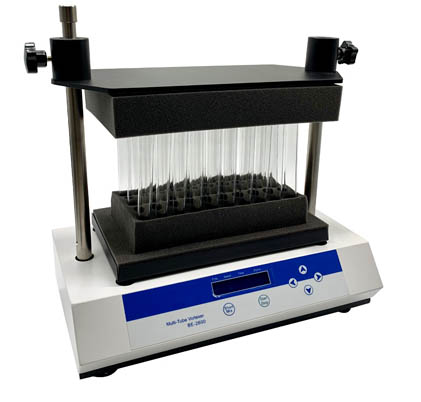

Multi-tube Vortex Mixer
Applicable field
This multi-tube vortex mixer can mix up to 50 samples at a time. A variety of accessories can be selected to meet the needs of vortex mixing of test tubes of different specifications.
Features
1. Up to 50 samples can be processed at one time
2. LCD display speed, time, microprocessor control speed and time
3. Equipped with 12mm foam test tube rack and tray mat as standard
4. Microprocessor control: the operation panel is simple and the microprocessor precisely controls the mixing time and speed
5. LCD display mixing speed and time
6. The maximum speed can reach 2500 rpm, the mixing effect is very good
Technical Specification
| Range of rotation |
500 ~ 2500rpm |
| Speed control accuracy |
±1rpm |
| Amplitude |
3.6mm |
| Timing range |
0s ~ 99H59M |
| Intermittent interval timing range |
1 ~ 99S |
| Intermittent operation timing range |
1S ~ 999S |
| Maximum load |
4.5kgs |
| Top cover size |
L.310 x W.180mm |
| Input power |
AC 100 ~ 230V, 50/60Hz |
| Power |
75W |
| Fuse |
250V, 1A, งถ5×20 |
| Dimensions (LxWxHmm) |
426x246x474 |
| Net weight |
14.7kg |
Instrument configuration:
Multi-tube vortex mixer; AC100~240V, 1.5A1 set, 1 sponge test tube rack, 1 pair of tray pads

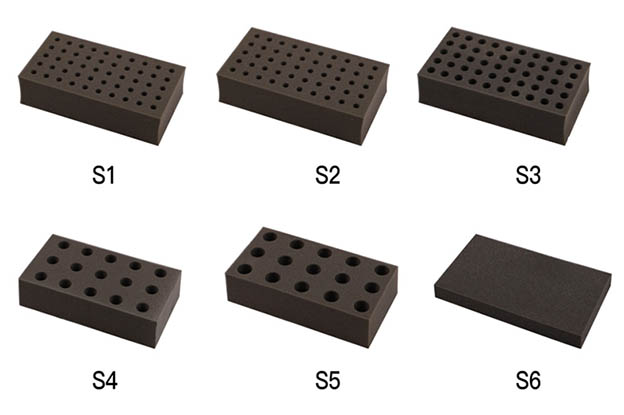

Optional accessories (foam test tube rack)
| Model |
Description |
Number of holes |
Dimensions (mm) |
| S1 |
Φ10mm foam test tube rack (Φ12mm foam test tube rack) |
50 |
245×132×45 mm |
| S2 |
Φ13mm foam test tube rack |
50 |
245×132×45 mm |
| S3 |
Φ16mm foam test tube rack (can hold 15ml centrifuge tubes) |
50 |
245×132×45 mm |
| S4 |
Φ25mm foam test tube rack |
15 |
245×132×45 mm |
| S5 |
Φ29mm foam test tube rack (can hold 50ml centrifuge tubes) |
15 |
245×132×45 mm |
| S6 |
Replaceable pallet pad (up & down) |
/ |
305×178.5×25 mm |
|
