Super Mixer
Applicable field
This high-teaching, multi-functional, compact, and versatile benchtop BE-3100 Super Mixer integrates the functions of mixing and oscillation and the concept of intelligent operation (ie 2-dimensional mixing control), suitable for a variety of mixing and mixing The vortex operation can mix various laboratory consumables such as microtubes, PCR plates, deep well plates and microwell plates.
Three mixing modules
¡ñ Work board
96-well PCR plate (with skirt, half-height skirt, no skirt) 384-well PCR plate 96-well and 384-well deep-well plate MTP micro-well plate, microtiter plate
¡ñ Microcentrifuge tube
0.2ml PCR tube, PCR row tube 0.5ml micro tube 1.5ml micro tube
¡ñ Vortex and mix various types of test tubes
Features
Fast and controllable mixing makes the experimental conditions between the wells and the wells and the tubes uniform, so it can improve the repeatability.
¡ñ PCR reaction system preparation
¡ñ Bacteria, DNA, cell culture precipitation
¡ñ Incubation
¡ñ Protein staining quantification
¡ñ Enzyme reaction system premix
¡ñ Vibrate and mix various test tubes

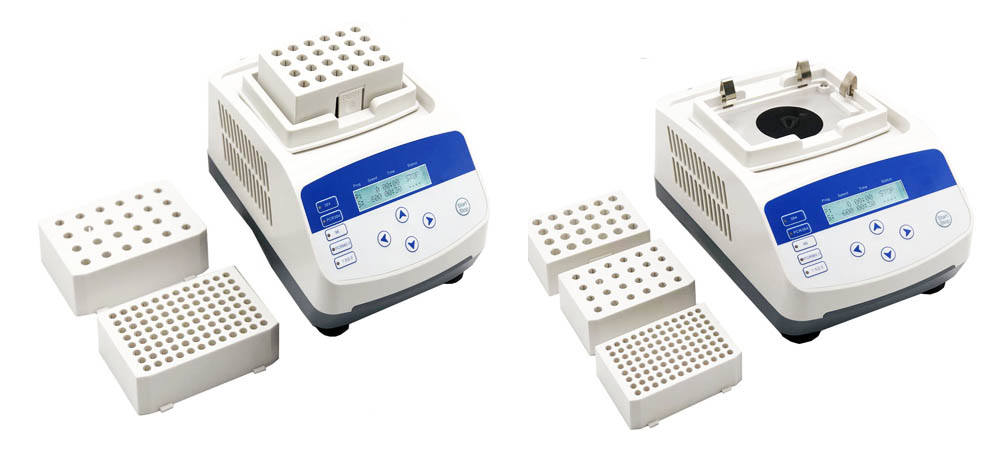

The standard configuration
BE-3100 Super Mixer includes three test tube holders:
¡ñ BE-A 96×0.2ml centrifuge tube holder, suitable for 0.2ml PCR tube, PCR tube, 96-well PCR plate (half-height skirt, no skirt)
¡ñ BE-B 24×0 5ml centrifuge tube holder
¡ñ BE-C 24×1.5/0.2ml centrifuge tube holder
¡ñ BE-D 8×15ml test tube holder (optional)
¡ñ BE-E 3×50ml test tube holder (optional)
In addition, 96-well PCR plates with slashed edges, 384-well PCR plates, micro-well plates, and deep-well plates can be directly put into the mixing without a stand.
Technical Specification
| Power supply |
100-240V¡¡50-60HZ |
| Power |
45W |
| Weight |
4.5kg |
| Dimension |
17×24×14cm |
| Mixing frequency |
300-3000rpm(In 10rpm increments) |
| Vortex oscillation mixing frequency |
3500rpm |
| Oscillation and mixing radius |
1.5mm (3mm amplitude) |
| Mixing time |
15s-99h59min |
|
