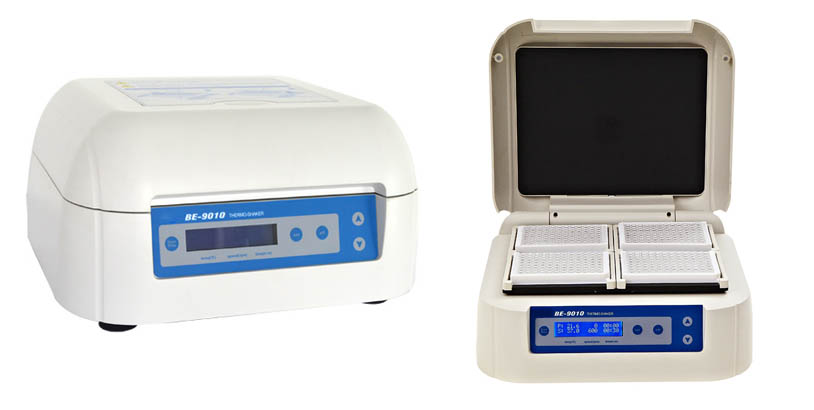

The microplate constant temperature oscillator adopts micro-processing technology combined with PID control to form a blank constant temperature incubator. It has the characteristics of light weight, low noise, no pollution; LCD display of temperature, oscillation speed, time, beautiful appearance and simple operation. Mainly used for ELISA plate (96-well/384-well), cell culture plate (24-well plate, 48-well plate, etc.) solutions at appropriate temperature for mixing or cell culture incubation.



●Human-machine friendly touch operation interface, LCD liquid crystal display

●Has the function of heating the microplate up and down, so that each well of the microplate can be evenly heated

●The microprocessor controls the temperature, speed and time, with good temperature control linearity, accurate oscillation speed and small fluctuation

●Can display the setting and actual temperature, time and oscillation speed parameters at the same time, and send out an audible alarm signal after the program runs

●DC brushless motor drive, long life, maintenance-free

●Has a power-off recovery function. When the external power supply is cut off and the power is turned on again, the equipment can automatically resume operation according to the original set procedure



Temperature control range	Room temperature+5℃-60℃
Temperature uniformity	±0.5℃
Temperature stability	±0.2℃
Platform temperature accuracy @37℃ Detected	＜0.5℃
Heating rate (from 20℃to70℃)	＜25min
Oscillation speed range (step 1rpm)	200-1200rpm
Oscillation amplitude and mode (horizontal rotation)	2mm
Timing range	0-99h59min
Capacity	4 microplates
Dimensions	385×395×190mm
Weight	9.5kg
