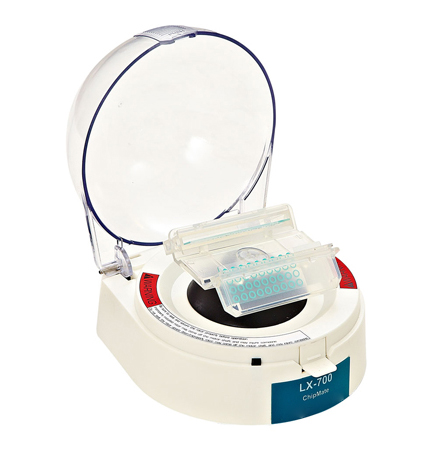

The LX-700 micro slide centrifuge is designed to dry two DNA microarray slides. ChipMate will spin and centrifuge the slides inserted into the centrifugal clamp, and use 480xg gravity centrifugal force to remove the water left on the slides after hybridization. The microarray marked on the surface of the slide will be safely protected and will not touch the centrifugal clamp. Due to the action of gravity, the removed water will remain at the bottom of the centrifugal clamp and will not return to the slide. Using the matching standard glass slide rotor, the rotation speed can reach 3500rpm, and the centrifugal force of 480×g can be generated, and the slide can be dried in only 10 seconds.



The micro slide centrifuge is easy to operate and does not require any settings during use. Simply close the lid to start operation, and simply press the stop button to open the lid to stop the operation. When the cover is opened, the rotor stops running immediately to avoid possible damage due to rotation. If you need to stop suddenly, press the stop label, and then open the cover after the rotor stops.



The micro slide centrifuge is designed with durability in mind. It uses an enhanced stop button, a strong hinge and a wider base to maintain stability.





● High-end quality, small size, stylish appearance



● The start and stop of centrifugation are fast and safe



● Dry two DNA microarrays within 10 seconds



● Protect the surface of the glass slide



● Water collection does not return



Power suppl	220/230/240V 50/60HZ,1A
Rotating speed	3500rpm（±20%）
Capacity	2Slides
Centrifugal force	310-690×g（Average 480×g)
Specification	155×175×125mm
Security Settings	The cover is opened and closed to control the operation, and the slide card slot is used to protect the slide from breaking.
