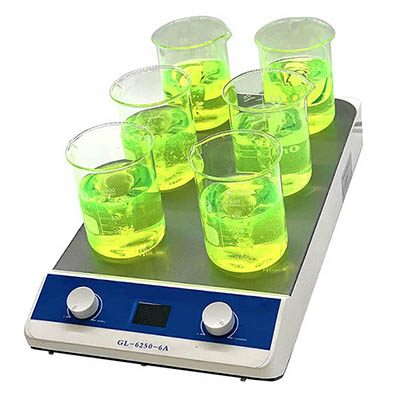

Multi-link Magnetic Stirrer
Applicable field
A magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid.
Features
The multi-link magnetic stirrer with digital display function, table top corrosion resistance, large capacity, strong magnetic force, stable stirring, stable operation, low noise operation, accurate reading, and timing. Brushless motor, durable. Stepless speed regulation, wide speed range.
Technical Specification
Control |
Asynchronous control (synchronous can be set) |
Number of stirring points |
6 |
Speed |
50-1500RPM |
Adapted rotor |
20-50MM |
Display type |
LCD liquid crystal display |
Timing |
23h/59min/59sec |
Voltage |
AC100-240V |
Working plate size |
110MM |
Maximum mixing volume |
6*500ml |
Motor type |
brushless motor |
Stirring direction |
right |
Allowable ambient temperature |
5-40¡æ80%RH |
|
