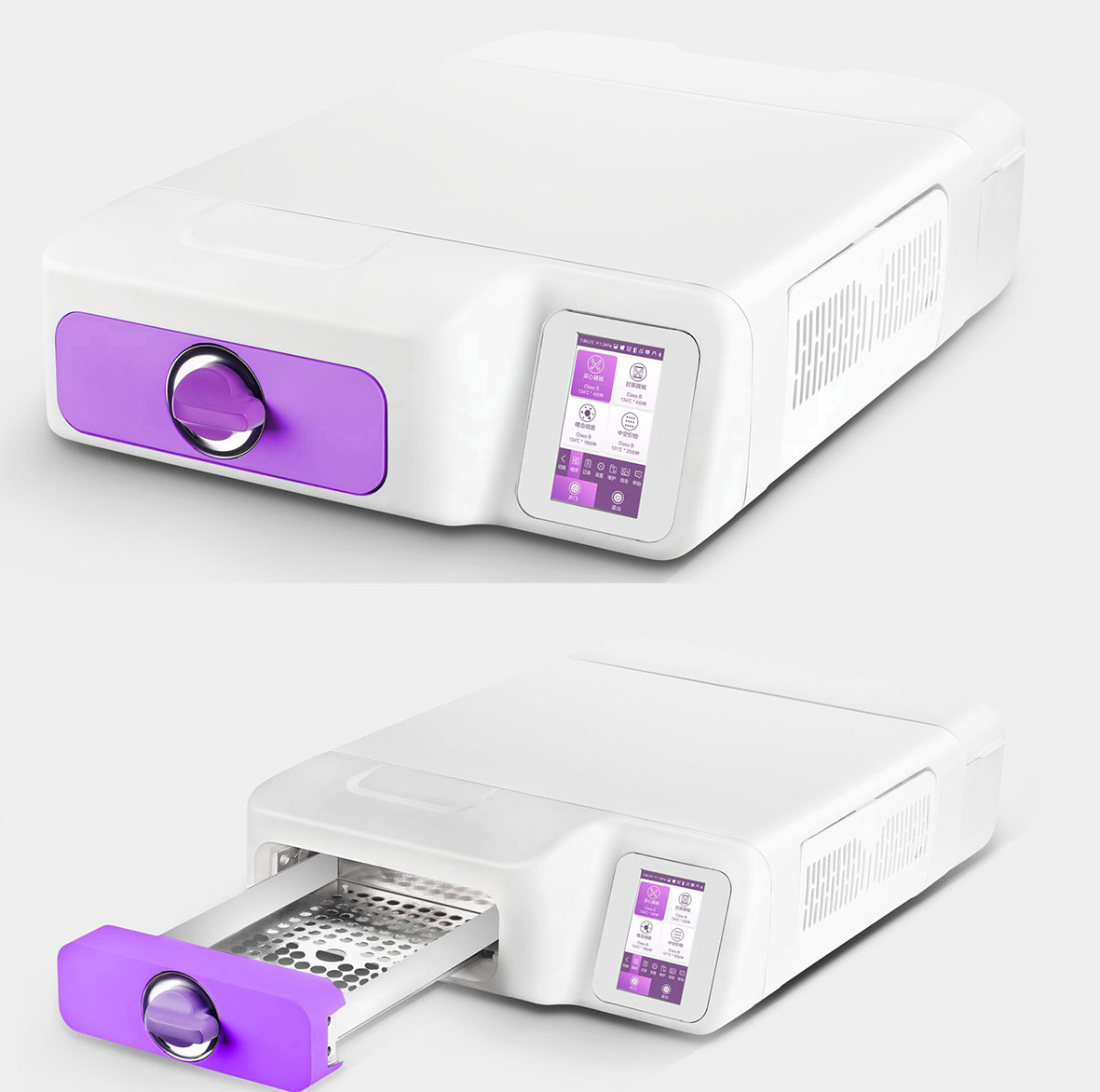

2L Mini Class B Cassette Autoclave
Steam sterilizer
”ńChamber
Medical Grade Aluminum Alloy 6061
Lightweight and durable, easy coating, high strengthand strong corrosion resistance
Commonly used in aircraft parts, ship accessories, precision instruments, etc.
”ńCassette design
Drawer-shape tray design, simple and easy operation
”ńNew operating system
Cycle in 8 minutes, as fast as you can expect
Split heating membranes in chamber, heating faster and more even
The newly designed humanized Ul makes the whole operating system more intelligent
Touch screen control with smart reminder, provides easier operating experience
”ńSpecial Program
HIV, HBV long-sterilization
”ńTest Program
Bowie&Dick Test,Vacuum Test,Helix Test
”ńDisplay
4.3 inch hiqh-light LCD, Colorful touch screen
”ńDry Program
Strong Vacuum Drying
”ńSterilization Data
USB Interface, Optional External Printer
”ńWater supply System
Optional extemal Water Tank
”ńSafety System
Relief Valve, Motor Lock system, Pressure and Temperature Overload Protection, Alarm System
Parameters
| Model |
CLASS B-HS-2L |
| Sterilization Class |
class B |
| Capacity |
2L |
| Control Precision |
Temperature:0.1°C, Pressure: 0.lkpa |
| Rack & Trays |
1 Tray |
| Chamber Size |
192.5X45.5X300mm |
| Packing SizeNet Weight |
750X520X230mm |
| Voltage/Power |
220V/1800W |
| Outside Size |
530X450x170mm |
| Net Weight |
23kg |
| Sterilization Temperature |
121”ę£¬134”ę |
| Maxtemperature |
145°c |
| Max. Working Pressure |
230kpa |
| Min.Working Pressure |
-0.90kpa(Optional) |
Fast Sterilizing Experience From Lab
| Program |
Temperature |
Pressure |
Vacuum Time |
Sterilization Time |
Dry Time |
From Cold |
From Warm |
| N Class |
134°C |
210kPa |
0 |
4mins |
0 |
8mins |
6mins |
| S Class |
134”ę |
210kPa |
1 |
4mins |
0 |
10mins |
8mins |
| B Class 134”ę |
134”ę |
210kPa |
3 |
4mins |
9mins |
25mins |
23mins |
| B Class 121”ę |
121”ę |
110kPa |
3 |
20mins |
18mins |
45mins |
43mins |
|
