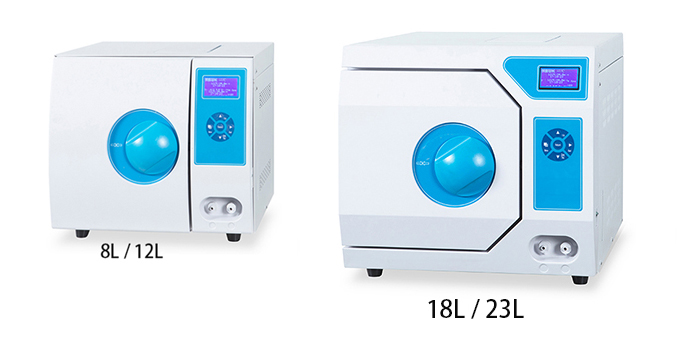

8L Class B Three Times Pre-vacuum Autoclave With LCD Dispay
Application
The Small capability autoclave suitable for Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House, etc.
Characteristics
• Quality stainless steel inner tank, sealed cover
• Microcomputer control
• Safety interlocking device
• With BD test, HELIX test, VACUUM test.
• LCD display and touch buttons.
• With standard test interface
• Open-type top water tank
• European CLASS B standard.
• With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning, and safety door lock.
• Three times pre-vacuum
• Buzzer reminder after sterilization, automatic stop.
• Automatic discharge of cold air, automatic steam exhaust after sterilization.
• Built-in steam generator to provide saturated steam quickly
• Optional external printer or built-in printer
• Optional USB function and U disk
Technical Parameter
| Model No. |
CLASS B-YF-8L |
CLASS B-YF-12L |
CLASS B-YF-18L |
CLASS B-YF-23L |
| Volume |
8L |
12L |
18L |
23L |
| Power |
2kw |
| Voltage |
110V/220V，60Hz/50Hz |
| Design pressure |
0.25MPa |
| Design temperature |
139℃ |
| Rated working pressure |
0.22MPa |
| Rated working temperature |
134℃ |
| Chamber volume |
Φ170x320 |
Φ220x335 |
Φ250x370 |
Φ250x452 |
| Outer dimension |
445x580x400mm |
445x580x400mm |
480x640x450mm |
480x690x450mm |
| Packing size(LxWxH) |
650x500x450mm |
650x500x450mm |
720x560x510mm |
760x560x510mm |
| Gross/net weight |
45/42Kg |
48/44Kg |
57/48Kg |
60/53Kg |
|
