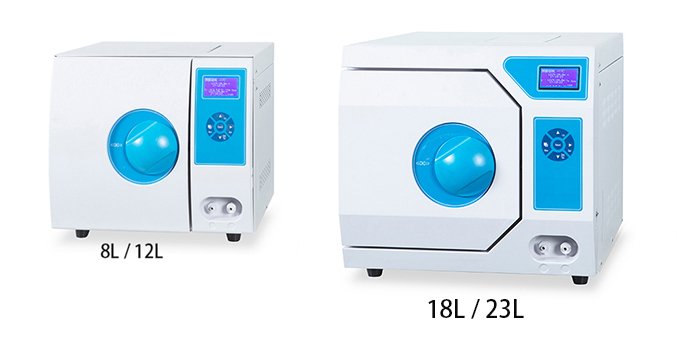

The Small capability autoclave suitable for Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House, etc.



• Quality stainless steel inner tank, sealed cover

• Microcomputer control

• Safety interlocking device

• With BD test, HELIX test, VACUUM test.

• LCD display and touch buttons.

• With standard test interface

• Open-type top water tank

• European CLASS B standard.

• With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning, and safety door lock.

• Three times pre-vacuum

• Buzzer reminder after sterilization, automatic stop.

• Automatic discharge of cold air, automatic steam exhaust after sterilization.

• Built-in steam generator to provide saturated steam quickly

• Optional external printer or built-in printer

• Optional USB function and U disk



Parameter / Model	CLASS B-YF-8L	CLASS B-YF-12L	CLASS B-YF-18L	CLASS B-YF-23L
Power	2KW
Voltage	110V/220V，60Hz/50Hz
Design pressure	0.25MPa
Design temperature	139℃
Rated working pressure	0.22MPa
Rated working temperature	134℃
Chamber volume (mm)	Φ170x320 (8L)	Φ220x335 (12L)	Φ250x370 (18L)	Φ250x452 (23L)
Outer dimension (mm)	445x580x400	445x580x400	480x640x450	480x690x450
Package size(LxWxH) (mm)	650x500x450	650x500x450	720x560x510	760x560x510
Gross/net weight (kg)	45/42	48/44	57/48	60/53
