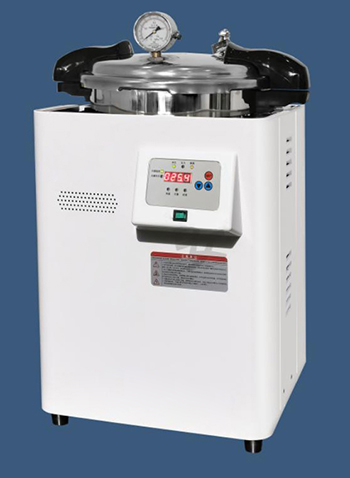

18L Portable Stainless Steel Pressure Steam Sterilizer
♦ Scope of application
This product is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfectionӣ
♦ Sterilization principle
This series of sterilizer is designed using the principle of wet heat killing microorganisms, its principle is the use of gravity displacement principle, so that steam in the sterilizer from the top down, the cold air is discharged from the lower exhaust hole, the discharged cold air is replaced by saturated steam, the use of steam release latent heat to sterilize items
♦ Intelligent microcomputer control system
Using LED digital control system: After sterilization finished, sterilizer will automatic alarm and shut down.
♦ Interlock device
The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
♦ The structure of cover’s opening
Using shift place type of quick open cover to improve sealing and safety performance.
♦ Preset program
Can preset fixed program that sterilize the liquid and solid body.
♦ storage system
Store the last operation program so convenient next operation.
♦ Digital display screen
Digital display screen and working indicator light display running state.
♦ Safety devices
Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.
Technical Parameter
| Parameter/Model |
YF-DSX-18L-I |
YF-DSX-24L-I |
YF-DSX-30L-I |
| Configuration |
Semi-auto |
Semi-auto |
Semi-auto |
| Material(mm) |
Stainless steel |
Stainless steel |
Stainless steel |
| Pot wall thickness(mm) |
2.0( Reference) |
2.0( Reference) |
2.0( Reference) |
| GW(kg) |
23 |
29 |
31 |
| Voltage/Power |
220V/2kW |
| Packing size(mm) |
510x510x720 |
540x500x900 |
540x500x900 |
| Product size(mm) |
440x445x629 |
440x484x815 |
440x484x815 |
| Use volume(DxHmm) |
269x260 |
269x320 |
269x420 |
| Time setting range |
1~999min |
| Rated working pressure |
0.142MPa |
| Temperature setting range |
50~126”ę |
|
