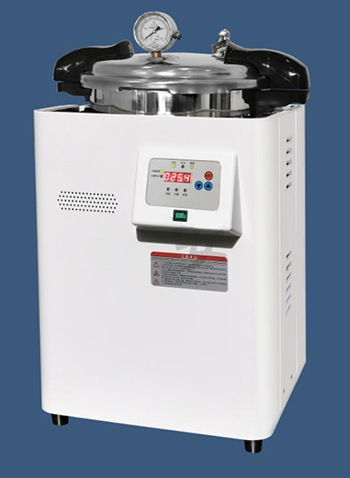

This product is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfection。



This series of sterilizer is designed using the principle of wet heat killing microorganisms, its principle is the use of gravity displacement principle, so that steam in the sterilizer from the top down, the cold air is discharged from the lower exhaust hole, the discharged cold air is replaced by saturated steam, the use of steam release latent heat to sterilize items



Using LED digital control system: After sterilization finished, sterilizer will automatic alarm and shut down.

The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.



Using shift place type of quick open cover to improve sealing and safety performance.



Can preset fixed program that sterilize the liquid and solid body.



Store the last operation program so convenient next operation.



Digital display screen and working indicator light display running state.



Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.



Parameter/Model	YF-DSX-18L-I	YF-DSX-24L-I	YF-DSX-30L-I
Configuration	Semi-auto	Semi-auto	Semi-auto
Material(mm)	Stainless steel	Stainless steel	Stainless steel
Pot wall thickness(mm)	2.0( Reference)	2.0( Reference)	2.0( Reference)
GW(kg)	23	29	31
Voltage/Power	220V/2kW
Packing size(mm)	510x510x720	540x500x900	540x500x900
Product size(mm)	440x445x629	440x484x815	440x484x815
Use volume(DxHmm)	269x260	269x320	269x420
Time setting range	1~999min
Rated working pressure	0.142MPa
Temperature setting range	50~126℃
