This product is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfection.

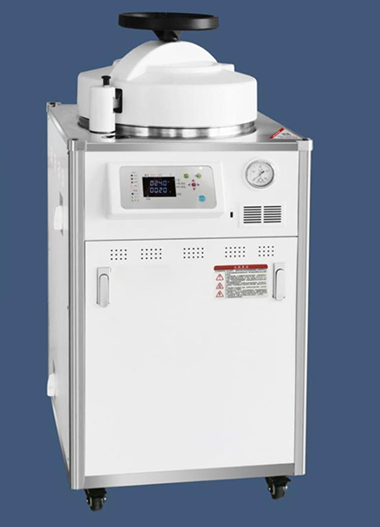

This series of sterilizer is designed using the principle of wet heat killing microorganisms, its principle is the use of gravity displacement principle, so that steam in the sterilizer from the top down, the cold air is discharged from the lower exhaust hole, the discharged cold air is replaced by saturated steam, the use of steam release latent heat to sterilize items.



• The shell case is made of high temperature thermoplastic material with outstanding impact resistance and stainless steel.

• The pot body of sterilizer is made of food grade stainless steel 304.

• Hand-wheel type rotary sealing structure is adopted to make it easy to use, safe and reliable.



• The console uses the LCD window graphic dynamic display, the whole sterilization process is controlled by microcomputer display and automatic cycle control, and the machine stops automatically after the end of sterilization with alarm.



• One-button sterilization function selection, which can make a quick and clear choice based on different items.

• With air-cooled chilling device to ensure that the pat body is quickly cooled at the end of sterilization, thus reducing the time to open the lid.

• It has the function of preheating and melting of sterilized items and has time and temperature selection for the items to be dissolved.

• Sterilization reservation function is available so that users can start it at a set time

• Automatic fault detection and judgment system is in place.

• The full-automatic control model has the function of discharging the low temperature air and steam internal exhaust and exhausting steam when sterilization procedure ends.

• Add print function, print the current temperature and sterilization time.



• Adopt the safety interlock structure of electrical and mechanical interaction to ensure that the interlock device locks the lid handle when there is pressure in the pot to avoid opening the lid when there is pressure in the pot.

• Double protection system with the mechanical safety relief valve and electronically controlled over-voltage protective device

• It has heater anti-drying protection function and leakage protection system



Parameter/Model	YF-LDZX-30L(Semi-auto) YF-LDZX-30L-I(Full-auto)	YF-LDZX-50L(Semi-auto) YF-LDZX-50L-I(Full-auto)	YF-LDZX-75L(Semi-auto)  YF- LDZX-75L-I(Full-auto)
Configuration	Semi-auto/Full-auto
Material(mm)	Stainless steel
Pot wall thickness(mm)	2.0( Reference)
G.W./N.W.(kg)	95/97	99/101	108/112
Voltage/Power	220V/3.5kW
Packing size(mm)	810x670x1260	810x670x1260	810x670x1410
Product size(mm)	670x580x1230	670x580x1230	670x580x1410
Use volume(DxH mm)	350x400	350x550	350x700
Basket size(DxHmm)	335x190	335x190(x2)	335x190(3)
Time setting range	1~9999 min
Rated working pressure	0.142MPa
Temperature setting range	50~126℃
