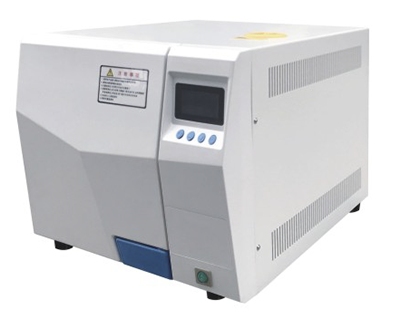

The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.



♦ For 4~6 minutes rapidly sterilizing.

♦ Digital display of working status, touch type key.

♦ With 3 fixed cycles of sterilizing program and adjustable for user.

♦ The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.

♦ Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

♦ Safe protection of water lacking.

♦ Exhaust the cool air automatically.

♦ Door safety lock system.

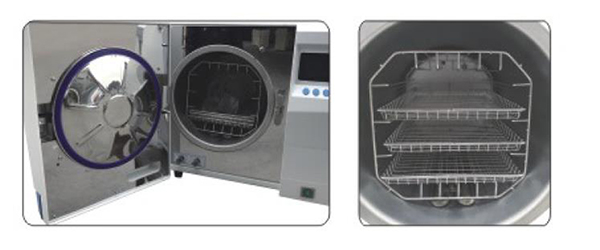

♦ With four stainless steel sterilizing plates.

♦The chamber of the sterilizer is made of stainless steel.

♦ Automatically shut off with beep reminding after sterilization.

♦ With drying function.



Technical Data  /  Model	YF-TM-XD20D	YF-TM-XD24D
Sterilizing chamber volume (mm)	20L  (Ø250×420)	24L  (Ø250×520)
Working pressure	0.22Mpa
Working temperature	134℃
Temperature adjustment range	105-134℃
Timer	0-99 min
Heat average	≤ ± 1℃
Power	1.5 KW / AC220V 50Hz	2 KW / AC220V 50Hz
Sterilizing plate (mm)	340×200×30(3pieces)	400×200×30(3pieces)
Inner Dimension (mm)	480×680×455	530×710×475
Package dimension (mm)	580×790×560	610×810×580
G. W/N.W. (kg)	52/47	54/49
