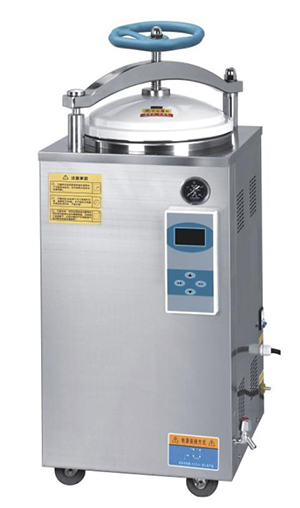

100L Vertical Pressure Steam Sterilizer (LCD Display)
Use
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and overpressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses. Culture media etc.
Characteristics
♦ Fully stainless steel structure.
♦ Hand wheel type of quick-open door structure.
♦ Door safety lock system.
♦ LCD display of working status, touch type key.
♦ Auto discharge the cool air, and steam discharge automatically after sterilization.
♦ Automatically shut off with beep reminding after sterilization.
♦ Over temperature & over pressure auto-protection.
♦ Easy to operate, safe and reliable.
♦ Safe protection of water lacking.
♦ With two stainless steel sterilizing baskets.
♦ Optional drying system.
♦ Self-inflating type seal.
Technical Parameter
| Technical data / Model |
YF-LS-35HD |
YF-LS-50HD |
YF-LS-75HD |
YF-LS-100HD |
| Chamber volume (mm) |
35L φ318×450 |
50L φ340×550 |
75L φ400×600 |
100L φ440×650 |
| Working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Max. working pressure |
0.23 Mpa |
| Heat average |
≤±1¡æ |
| Timer range |
0¡«99min or 0¡«99hour59min |
| Temperature adjust range |
105¡«134¡æ |
| Power |
1X2.5Kw/AC220V 50Hz |
2X1.5Kw/AC220V50Hz |
3X1.5Kw/AC220V50Hz |
| Overall dimension (mm) |
470×450×1020 |
520×490×1150 |
550×530×1180 |
580×560×1290 |
| Transport dimension (mm) |
540×540×1140 |
580×580×1250 |
610×610×1280 |
640×640×1360 |
| G.W/N.W. (kg) |
81 /63 |
94/ 74 |
113/ 93 |
131/ 105 |
|
