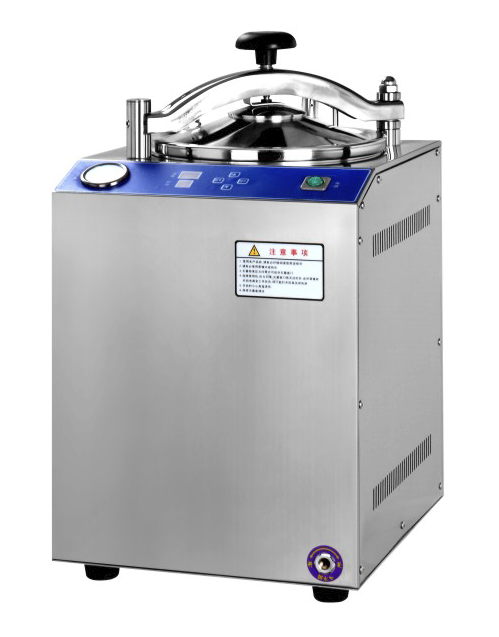

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses culture media etc.





♦ The full unit is made of nice quality stainless steel, and stand well.

♦ Rapid sterilizing, only required 4~6 mins.

♦ Touch key, self-define of the sterilizing data.

♦ Hand wheel type of quick-open door structure, self- inflating type seal with door safety lock system.

♦ Equipped with electric pressure temperature controller, constant voltage and temperature can be automatically kept when the unit reach the setting parameter.

♦ Over temperature and over pressure self protection: if the inner pressure is over 0.245MPa, the safety valve will be turn on automatically.

♦ Self protection of water lacking.

♦ Automatically shut off with beep reminding after sterilization.





Technical data  /  Model	YF-LS-28HD
Sterilizing chamber  volume (mm)	28L  φ270×500
working pressure	0.22MPa
working  temperature	134℃
Temperature adjust range	105-134℃
Time range	0-99 min
Heat average	≤±1℃
Power	2KW/AC 220V 50Hz
Overall dimension (mm)	440×420×750
Transport dimension (mm)	490×480×760
G.W/N.W (kg)	28 /25
