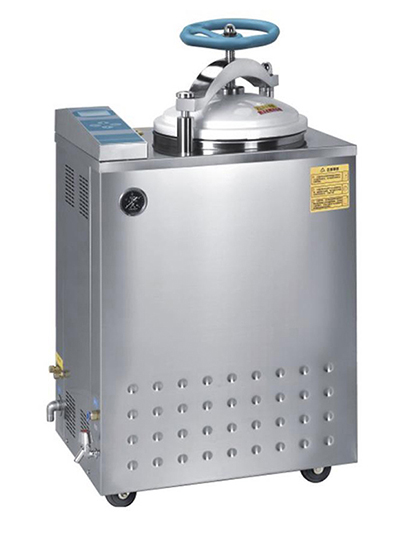

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and overpressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses culture media etc.



♦ Microcomputer controlled, digital display of working statues, touch type key.

♦ It dynamically shows the temperature, pressure time ,vacuum rate and the cycle status.

♦With fully automatically route of the water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying.

♦ 3 times pulse vacuum, the vacuum rate would reach -0.081MPa after that, which ensure the completely extracting of inner air from the dressing and A,B type hollowed appliance.

♦ With 4 fixed programs for the appliance, medical dressing, rubber and fluid, the user also could set the program as they need randomly.

♦ Equipped with the P'T/TT testing connector, easy for running the testing.

♦ Multiple pulse vacuum drying after sterilizing, which ensure the good sterilizing result.

♦ Equipped with 0.22μm bacteria filter, it ensure the air which enter the inner vacuumed chamber is sterile, avoid the second time contamination.

♦ Hand wheel type for quick-open the door. Self-inflating type seal.

♦ Adopted with immersed heating tube, with high heating efficiency.

♦ Steam-water inner circulation system: no steam discharge, and the environment for the sterilizing will be clean and dry.

♦ Automatically shut off with beep reminding after sterilization.

♦ Fully high quality stainless, equipped with double stainless steel baskets.

♦ Equipped with separate steam generator .

♦ Printer is optional.



Technical data  /  Model	YF-LS-50HV	YF-LS-75HV	YF-LS-100HV
Chamber volume (mm)	50L φ340×550	75L φ400×600	100L φ440×650
Working pressure	0.22MPa
Working temperature	134℃
Max. working pressure	0.23 Mpa
Heat average	≤±1℃
Timer range	0～99min
Temperature adjust range	0～134℃
Power	(3.2+1.6)KW/AC220V 50Hz	(3.2+1.8)KW/AC220V 50Hz	(3.2+1.9)KW/AC220V 50Hz
Overall dimension (mm)	660×460×1160	700×510×1250	700×510×1250
Transport dimension (mm)	740×550×1270	780×600×1380	780×600×1380
G.W/N.W. (kg)	137 /114	168/ 142	172/ 146
