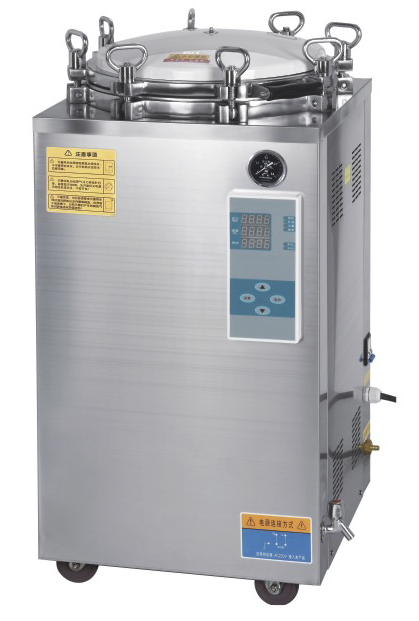

75L Vertical Pressure Steam Sterilizer LED Display
Use
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and overpressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses culture media etc.
Features
♦ Fully stainless steel structure
♦ LED display of working status, touch type key.
♦ Auto discharge the cool air, and steam discharging automatically after sterilization.
♦ Automatically shut off with beep reminding after sterilization.
♦ Easy to operate, safe and reliable.
♦ With two stainless steel sterilizing baskets.
Technical Parameter
| Technical data / Model |
YF-LS-35LD |
YF-LS-50LD |
YF-LS-75LD |
YF-LS-100LD |
YF-LS-120LD |
YF-LS-150LD |
| Chamber volume (mm) |
35L φ318×450 |
50L φ340×550 |
75L φ400×600 |
100L φ440×650 |
120L φ480×660 |
150L φ510×740 |
| Working pressure |
0.22MPa |
| Working temperature |
134¡æ |
| Max working pressure |
0.23 Mpa |
| Heat average |
≤±1¡æ |
| Timer range |
0¡«99min or 0¡«99hour59min |
| Adjustment of temperature |
105¡«134¡æ |
| Power |
1X2.5KW/AC220V 50Hz |
2X1.5KW/AC220V 50Hz |
3X1.5KW AC220V 50Hz |
3X2.0KW AC220V50Hz |
| Overall dimension (mm) |
470×450×840 |
520×500×970 |
550×530×990 |
580×560×1060 |
630×610×1130 |
660×640×1130 |
| Transport dimension (mm) |
540×540×970 |
580×580×1090 |
610×610×1110 |
640×640×1170 |
690×690×1240 |
730×730×1230 |
| G.W/N.W (kg) |
61 / 46 |
73 / 56 |
87 / 67 |
95 / 73 |
116 / 100 |
130 / 111 |
|
