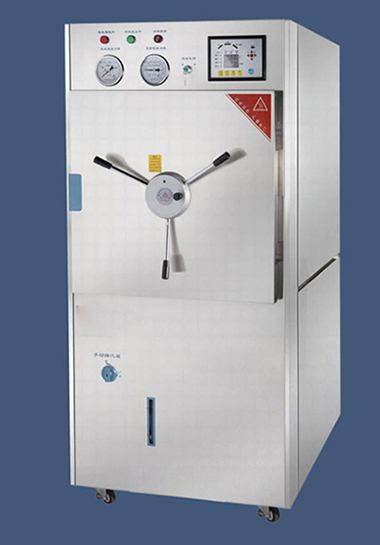

200L Horizontal Pressure Steam Sterilizer
♦ Scope of application
This product is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfection.
♦ Sterilization principle
This series of sterilizer is designed using the principle of wet heat killing microorganisms, its principle is the use of gravity displacement principle, so that steam in the sterilizer from the top down, the cold air is discharged from the lower exhaust hole, the discharged cold air is replaced by saturated steam, the use of steam release latent heat to sterilize items.
♦ Intelligent microcomputer control system
Using LED digital control system, After sterilization finished, sterilizer will automatic alarm and shutdown.
♦ Interlock device
The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizer's cover, Make sure the operator's safety.
♦ The structure of cover's opening
Using 8 rotary extendable stick to improve sealing and safety performance.
♦ Preset program
Can preset fixed program that sterilize solid body.
♦ Memory storage system
Store the last operation program so convenient next operation.
♦ Feed water control
Automatic water intake and water refill function
♦ Exhaust steam control
After sterilization, exhaust steam valve should be opened (Digital display screen reminds exhaust steam) when sterilization time run out.
♦ Interface check
Provide temperature and pressure check interface; convenient to check multiple position temperature measure.
♦ Digital display screen
Digital display screen and working indicator light display running state.
♦ Safety devices
Adopt the safety interlock structure of electrical and mechanical interaction to ensure that the interlock device locks the lid handle when there is pressure in the pot to avoid opening the lid when there is pressure in the pot.
♦ Print function ( add configuration)
Print the current temperature and sterilization time,
Technical Parameter
| Parameter/Model |
YF-WDZX-200L |
YF-WDZX-300L |
| Configuration |
Semi-auto |
| Material (mm) |
Stainless steel |
| Pot wall thickness (mm) |
3.0( Reference) |
| Gross Weight |
300kg |
335kg |
| Voltage/Power |
380V/9kW |
380V/10.5kW |
| Packing size(mm) |
1640x830x1800 |
1640x930x1900 |
| Product size(mm) |
1550x720x1640 |
1550x820x1740 |
| Use volume (DxH mm) |
500x1120 |
600x1240 |
| Basket size (Up L*Up w*Down L*Down W* H mm) |
480x440x480x250x190 |
500x540x500x300x230 |
| Time setting range |
1~9999 min |
| Rated working pressure |
0.217MPa |
| Temperature setting range |
50~134°C |
|
