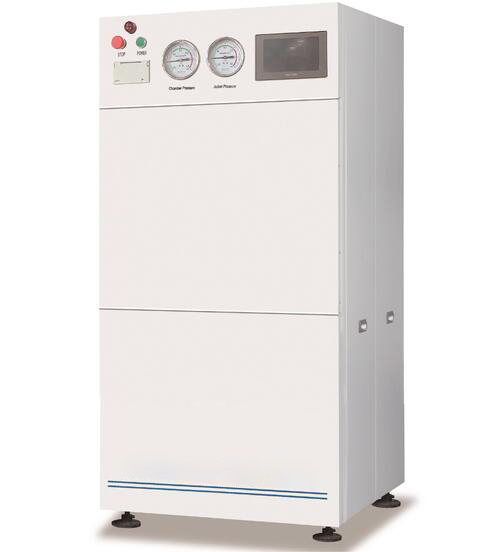

150L Horizontal Pressure Steam Sterilizer With Touch Screen & Single/Double Door
Features
• Horizontal circular inner chamber & jacket structure. Safety, heat preservation, and drying function.
• Disc type embedded gear & Electric lock door structure. Safety and reliable.
• Door seals are pneumatic.
• Equipped with standard equipment verification interface.
• Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly.
• Control system: HMl man-machine interface, touch screen & microcomputer.
• F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records.
• With program selection, parameter setting, equipment operation, report processing and traceability functions.
• Multiple safety protection(over-temperature, over-pressure protect).
• Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom defined multiple procedures.
Main Technical Parameter
| Design pressure |
-0.1~0.25MPa |
Design temperature |
139¡æ |
| Working pressure |
0.225MPa |
Working Temperature |
105~136¡æ |
| Vacuum |
-0.086MPa |
Temperature Equilibrium |
<+2.0¡æ |
| Water Pressure |
0.1~0.2MPa |
Compressed air pressure |
0.4~0.7MPa |
| External Steam Pressure |
0.3~0.7MPa |
Power voltage |
Three-phase five-wire AC 380V 50Hz |
Technical Data (Without Pulse Vacuum£©
| Model / Parameter |
Overall Dimensions (LxWxH)mm |
Chamber Size (§¶xL)mm |
Steam Consumption (kg) |
Water Consumption (kg) |
Power (kw) |
Net Weight (kg) |
| YF-WY-150D/YF-WY-150S |
1290x690x1680 |
§¶472x880 |
≤12 |
≤30 |
≤2+⑮ |
400/450 |
| YF-WY-200D/YF-WY-200S |
1560x690x1680 |
§¶472x1150 |
≤13 |
≤30 |
≤2+⑮ |
450/500 |
| YF-WY-300D/YF-WY-300S |
1430x850x1760 |
§¶620x995 |
≤18 |
≤40 |
≤2+⑱ |
510/570 |
| YF-WY-400D/YF-WY-400S |
1755x850x1760 |
§¶620x1320 |
≤22 |
≤40 |
≤2+⑱ |
650/710 |
Technical Data (With Pulse Vacuum£©
| Model / Parameter |
Overall Dimensions (LxWxH)mm |
Chamber Size (§¶xL)mm |
Steam Consumption (kg) |
Water Consumption (kg) |
Power (kw) |
Single/Double Door Net Weight (kg) |
| YF-WY-100DM |
1160x650x1680 |
§¶420x750 |
≤11 |
≤190 |
≤2+⑫ |
410 |
| YF-WY-150DM/YF-WY-150SM |
1290x690x1680 |
§¶472x880 |
≤13 |
≤190 |
≤2+⑮ |
450/500 |
| YF-WY-200DM/YF-WY-200SM |
1560x690x1680 |
§¶472x1150 |
≤15 |
≤190 |
≤2+⑮ |
500/550 |
| YF-WY-300DM/YF-WY-300SM |
1430x850x1760 |
§¶620x995 |
≤20 |
≤200 |
≤2+⑱ |
560/620 |
| YF-WY-400DM/YF-WY-400SM |
1755x850x1760 |
§¶620x1320 |
≤25 |
≤200 |
≤2+⑱ |
700/760 |
Note:
1.For example≤2+⑱, the first 2 is the power of the system, and the ⑱ is the power of the built-in steam generator(the steam generator is optional).
2. Model“D" means sinale door ,“S" means double, “M” means pulsation vacuum.
|
