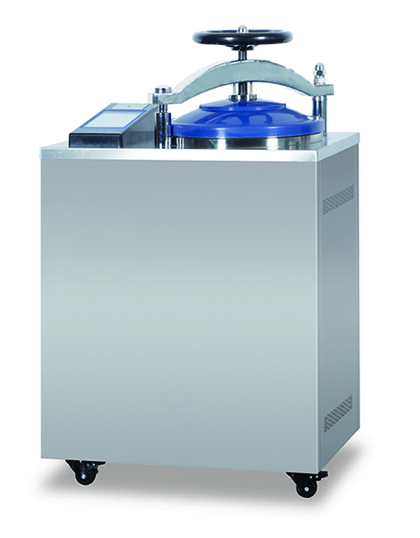

50L Vertical 3-Times Pre-vacuum Steam Sterilizer
Scope of application
It is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfection.
Structure & function
¡ñ Hand wheel translational & quick-opening structure
¡ñ 3-times pre-vacuum
¡ñ High quality stainless steel material
¡ñ Microcomputer automatic control, arbitrary setting sterilization parameters
¡ñ Safety interlocking device
¡ñ LED touch screen display
¡ñ Standard test interface
¡ñ Self-expanding seal
¡ñ With drying function
¡ñ With stainless steel bucket or basket
¡ñ With automatic protection function:
over temperature protection; over pressure self discharge protection; low water level protection; anti dry burning.
¡ñ Automatic water
¡ñ External steam Generator
¡ñ Buzzer reminder after sterilization, automatic stop.
¡ñ Automatic discharge of cold air, automatic steam exhaust after sterilization
¡ñ Internal printer
Technical Specification
| Technical Data / Model |
YF-DGL-35M |
YF-DGL-50M |
YF-DGL-75M |
YF-DGL-100M |
| Volume |
35L |
50L |
75L |
100L |
| Power |
3.5kw |
4.5kw |
| Voltage |
AC220V, 50HZ |
| Design pressure |
0.25MPa |
| Design temperature |
139¡æ |
| Rated working pressure |
0.22MPa |
| Rated working temperature |
134¡æ |
| Sterilization temperature setting range |
116C-134¡æ |
| Sterilization time setting range |
4~120 min |
| Drying time setting range |
0~240 min |
| Chamber volume (mm) |
Φ350x400 |
Φ400x505 |
Φ400x655 |
Φ450x650 |
| Bucket dimension (mm) |
Φ330x320 |
Φ380x430 |
Φ380x560 |
Φ420x540 |
| (Optional) Basket dimension (mm) |
Φ320x350 |
Φ360x280x1 |
Φ360x280x2 |
Φ410x300x2 |
| Outer dimension (mm) |
698x498x940 |
630x500x1180 |
725x525x1170 |
760x560x1260 |
| Package size(LxWxH) (mm) |
790x610x1130 |
800x600x1230 |
840x610x1310 |
870x650x1380 |
| Gross/net weight (kg) |
130/115 |
138/118 |
150/124 |
159/132 |
|
