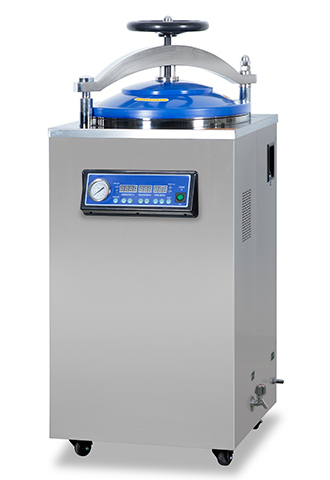

75L Vertical Steam Sterilizer with Multifunctional Automatic With Drying
Scope of application
It is suitable for pharmaceutical scientific research and chemical industry and other units, can be dressings, glassware media and other disinfection.
Structure & Function
¡ñ Hand wheel translational & quick-opening structure
¡ñ High quality stainless steel material
¡ñ Microcomputer automatic control, arbitrary setting sterilization parameters
¡ñ Safety interlocking device
¡ñ Digital display and touch buttons
¡ñ Standard test interface
¡ñ Self-expanding seal
¡ñ With drying function
¡ñ With automatic protection function:
over temperature protection; over pressure self discharge protection; low water level protection; anti dry burning.
¡ñ With stainless steel bucket or basket
¡ñ Buzzer reminder after sterilization, automatic stop.
¡ñ Automatic discharge of cold air, automatic steam exhaust after sterilization.
¡ñ Optional external printer
¡ñ Optional automatic water
Technical Specification
| Technical Data / Model |
YF-DGL-35G |
YF-DGL-50G |
YF-DGL-75G |
YF-DGL-100G |
| Volume |
35L |
50L |
75L |
100L |
| Power |
3.5kw |
4.5kw |
| Voltage |
AC220V, 50HZ |
| Design pressure |
0.25MPa |
| Design temperature |
139¡æ |
| Rated working pressure |
0.22MPa |
| Rated working temperature |
134¡æ |
| Sterilization temperature setting range |
116C-134¡æ |
| Sterilization time setting range |
4~120 min |
| Drying time setting range |
0~240 min |
| Chamber volume (mm) |
Φ350x400 |
Φ350x525 |
Φ400x625 |
Φ450x650 |
| Bucket dimension (mm) |
Φ330x320 |
Φ330x460 |
Φ380x560 |
Φ420x540 |
| (Optional) Basket dimension (mm) |
Φ320x350 |
Φ320x240x2 |
Φ360x280x2 |
Φ410x300x2 |
| Outer dimension (mm) |
480x480x1000 |
480x480x1120 |
525x525x1190 |
550x550x1250 |
| Package size(LxWxH) (mm) |
580x630x1130 |
580x630x1230 |
630x680x1290 |
690x650x1410 |
| Gross/net weight (kg) |
79/58 |
106/80 |
120/90 |
133/106 |
|
