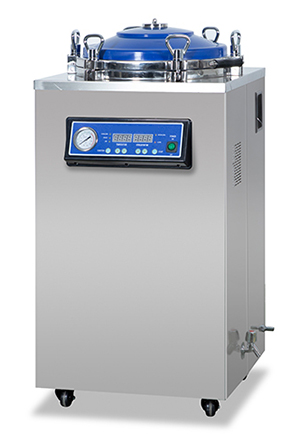

75L Vertical Steam Sterilizer With Bolted digital displayed automatic control
Structure & Function
¡ñ Bolt structure
¡ñ High quality stainless steel material
¡ñ Microcomputer automatic control, arbitrary set of sterilization parameters
¡ñ Digital display and touch buttons
¡ñ Standard test interface
¡ñ The container with automatic protection function:
over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning
¡ñ With stainless steel bucket or basket
¡ñ Buzzer reminder after sterilization, automatic stop.
¡ñ Automatic cooling air, sterilization end automatic exhaust steam
Technical Specification
| Technical Data / Model |
YF-DGLS-35B |
YF-DGLS-50B |
YF-DGLS-75B |
YF-DGLS-100B |
YF-DGLS-120B |
YF-DGLS-150B |
| Volume |
35L |
50L |
75L |
100L |
120L |
150L |
| Power |
2.5kw |
3.5kw |
4.5kw |
4.5kw |
4.5kw |
6.0kw |
| Voltage |
AC220V, 50HZ |
| Design pressure |
0.25MPa |
| Design temperature |
139¡æ |
| Rated working pressure |
0.22MPa |
| Rated working temperature |
134¡æ |
| Sterilization temperature setting range |
116C-134¡æ |
| Sterilization time setting range |
4~120 min |
| Chamber volume (mm) |
Φ300x500 |
Φ350x525 |
Φ400x625 |
Φ450x650 |
Φ450x760 |
Φ500x780 |
| Bucket dimension (mm) |
Φ280x400 |
Φ330x460 |
Φ380x560 |
Φ420x540 |
Φ420x660 |
Φ470x720 |
| (Optional) Basket dimension (mm) |
¡¡ |
Φ320x240x2 |
Φ360x280x2 |
Φ410x300x2 |
Φ410x350x2 |
Φ460x350x2 |
| Outer dimension (mm) |
400x400x860 |
480x480x960 |
525x525x1060 |
555x555x1080 |
555x599x1200 |
605x649x1210 |
| Package size(LxWxH) (mm) |
550x500x1030 |
580x630x1100 |
630x680x1190 |
690x650x1230 |
690x650x1330 |
750x700x1370 |
| Gross/net weight (kg) |
58/41 |
75/53 |
82/61 |
103/78 |
108/82 |
116/90 |
|
