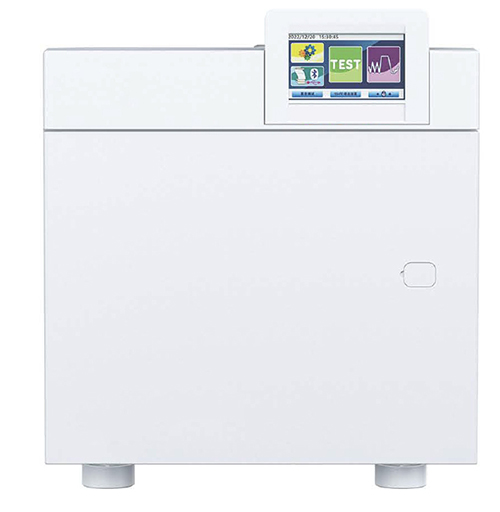

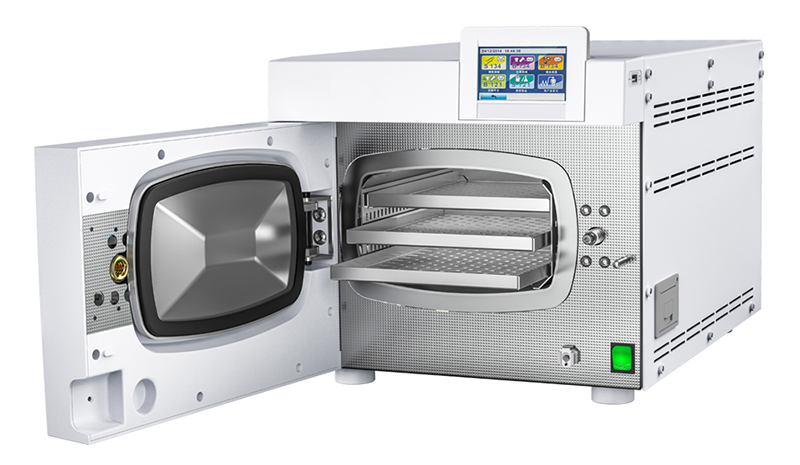

10L Class B Tabletop Three Times Pre-vacuum Rapid Autoclave
Application
European Class B three times pre-vacuum sterilization, in accordance with EN 13060-2014 standard. Suitable to sterilize instruments packed, unpacked, solid, Hollow A, Hollow B and Hollow B pipeline. High efficiency, all wave sterilizing.
Features
• New Rapid Steam Generator, only 12 minutes
• Vacuum index: -85Kpa, Resolution is 1Kpa
• Residual humidity <0.2%.
• Helix and BD Test
• User-defined Function
• MXP 5700 Pressure Sensor
• Heraeus Temperature Sensor(dual)
• 480*272 Colour Touch Screen
• Automatic door structure
• Delay-Start/Sleep-Mode
• Water Monitoring
• Pipeline Cleaning
• USB Records
• Build-in Printer
• External Printer is optional
• Mobile APP
Specification
| Model |
Voltage(V/Hz) |
Power(VA) |
Vol(L) |
Chamber(mm) |
Product Size(mm) |
Pack Size(mm) |
G.W/N.W(kg) |
Space(cm) |
| YF-JN-05 |
230/50/60 |
1600 |
5 |
192x96x320 |
585x360x345 |
675x450x435 |
48/45 |
50 |
| YF-JN-10 |
230/50/60 |
1600 |
10 |
230x133x320 |
585x400x345 |
675x490x435 |
51.5/48 |
50 |
|
