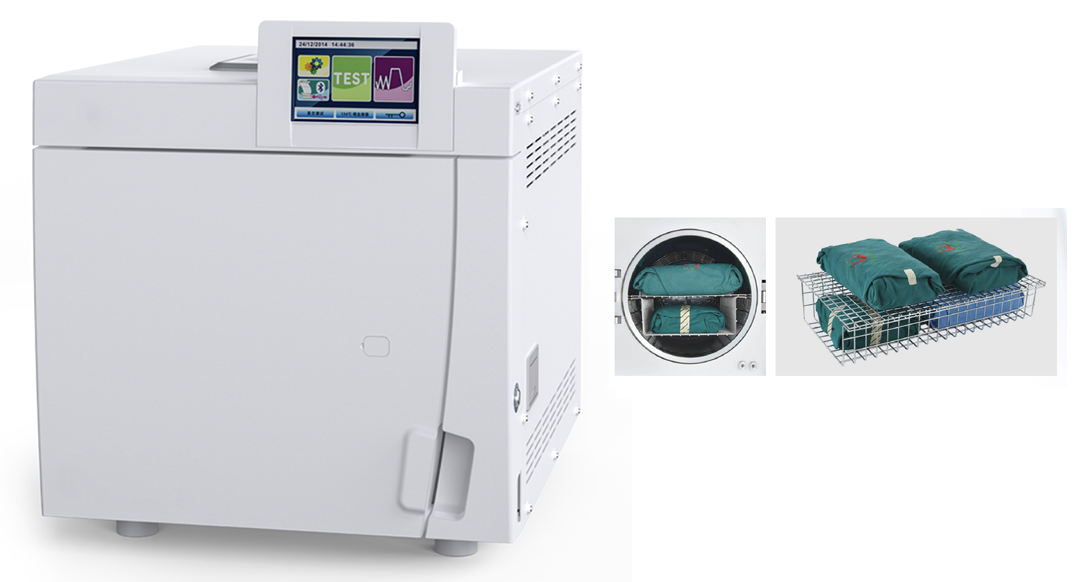

European Class B three times pre-vacuum sterilization, in accordance with EN 13060-2014 standard.  Suitable to sterilize instruments packed, unpacked, solid, Hollow A, Hollow B and Hollow B pipeline. High efficiency, all wave sterilizing.



• 800*480 Colour Touch Screen

• New Rapid Steam Generator

• Vacuum index: -85Kpa, Resolution is 1Kpa

• Residual humidity <0.2%.

• Helix and BD Test

• User-defined Function

• MXP 5700 Pressure Sensor

• Heraeus Temperature Sensor(dual)

• Automatic door structure

• Delay-Start/Sleep-Mode

• Water Monitoring

• Pipeline Cleaning

• USB Records

• Build-in Printer

• External Printer is optional

• Mobile APP



Model	Voltage(V/Hz)	Power(VA)	Vol(L)	Chamber(mm)	Product Size(mm)	Pack Size(mm)	G.W/N.W(kg)	Space(cm)
YF-JN-23	230/50/60	1600	23	Ф250x450	653x500x458	740x595x560	62/58	60
YF-JN-29	230/50/60	3500	29	Ф319x420	688x565x500	805x685x750	120/104	70
YF-JN-45	230/50/60	5500	45	Ф319x620	838x565x500	975x685x750	136/119	80
