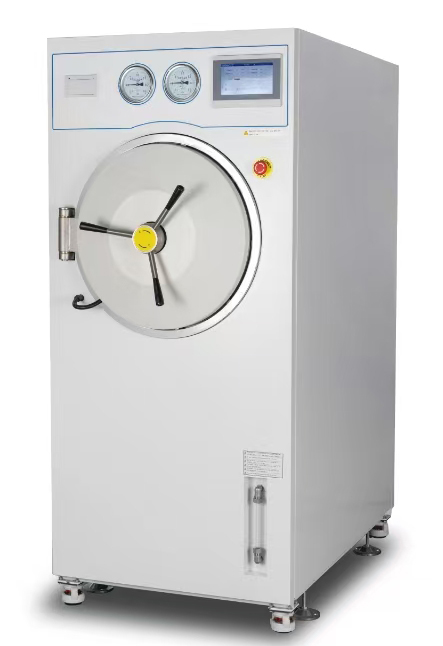

The manual door horizontal sterilizer removes air in the way of gravity displacement /pulsating vacuum and sterilizes items through pressure saturated steam. The sterilization effect is reliable and it is the most effective sterilization method in the physical sterilization method. The sterilizer is suitable for scientific research units such as hospital supply room, operating room and laboratory, and is suitable for sterilization of various utensils, appliances, sterile clothes, dressings, liquids and other items.



◆ Porous load: Fabrics, sterile gowns, wrapping equipment, filters, rubber, etc.

◆ Hard load: Tools, Luminal instrument, glassware, metal containers, etc.

◆ Liquid load: Non-sealed liquids such as culture media



◆ Using microcomputer control technology, touch screen operation, the whole process (heating, sterilization, exhaust steam, drying) the whole process of automatic program operation.

◆ Touch screen automatically displays operating status, temperature, pressure, time and other parameters as well as fault alarm information.

◆ With fabric, instrument, rubber, liquid, custom 4 sterilization procedures for users to choose.

◆ Built-in high efficiency steam generator, can quickly produce constant pressure steam, do not pollute sterilized goods.

◆ Optional configuration of micro printer, real-time sterilization process and fault alarm information.

◆ When the program cycle ends, there is a buzzer prompt when the fault alarm occurs.

◆ Safety device

• Overtemperature automatic protection device: the system automatically cuts off the power supply when the temperature exceeds the setting.

• Door safety interlocking device: electronic door lock is adopted. Only when the door is closed in place, the sterilizer can start the working procedure. If there is pressure in the inner room or the power supply is not connected, the electronic door lock locks the door handle and the door cannot be opened.

• Dry burning alarm device: when the water level is lower than the low water level, the heating power will be cut off automatically and alarm information will be displayed.

• Overpressure relief valve: when the set pressure is exceeded, the relief valve opens to release the pressure.

• Electronic circuit safety device: DC control circuit with overvoltage overload protection, ac main circuit with short circuit protection.

◆ Design pressure:   0.3MPa;

◆ Rated working pressure:    0.23MPa

◆ Pressure display accuracy:    0.1kpa

◆ Sterilization temperature:    105 ~ 136℃

◆ Temperature display accuracy:   0.1℃

◆ Maximum temperature:   136℃

◆ Temperature uniformity:   ≤±0.5℃;

◆ Cavity material:    SUS304 stainless steel



Model	Volume  (L)	Chamber size（Φ×L mm）	Overall dimensions（L×W×H mm）	Weight (Kg)	Power
YF-MST-60N	60	386x500	985x600x1450	60	380V/220V, 50Hz, 6.6KW
YF-MST-80N	80	386x700	985x600x1450	100	380V/220V, 50Hz, 6.6KW
YF-MST-100N	100	386x860	1150x600x1450	115	380V/220V, 50Hz, 6.6KW
YF-MST-135N	135	500x700	1000x750x1750	200	380V/220V, 50Hz, 12KW
YF-MST-150N	150	500x780	1080x750x1750	215	380V/220V, 50Hz, 12KW
YF-MST-185N	185	500x950	1250x750x1750	220	380V/220V, 50Hz, 12KW
YF-MST-200N	200	500x1000	1300x750x1750	240	380V/220V, 50Hz, 12KW
YF-MST-300N	300	632x1000	1350x900x1850	325	380V/220V, 50Hz, 20KW
YF-MST-450N	450	632x1450	1800x900x1850	420	380V/220V, 50Hz, 30KW
