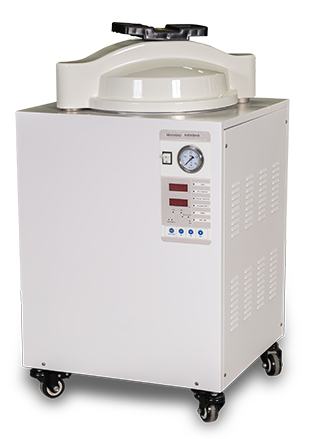

This vertical sterilizer is a small automatic high temperature and high pressure sterilization equipment with pressure steam as the medium. It is suitable for sterilization of fabrics, tools, rubber, sealed liquid, culture medium, waste and other items in biological laboratory and other biomedical research institutes.

◆ Design pressure:      0.3MPa

◆ Rated working pressure:     0.23MPa

◆  Pressure display accuracy:       0.1kpa

◆ Sterilization temperature:       105 ~ 136℃

◆ Temperature display accuracy :        0.1℃

◆ Maximum temperature:     136℃

◆ Dissolution temperature:        40~100℃

◆ Insulation temperature:          40~60℃

◆ Temperature uniformity:        ≤±0.5℃

◆ Cavity material:         SUS304 stainless steel

◆ Accessory:        stainless steel disinfection basket



◆ Adopt microcomputer program automatic control technology, LED display, touch buttons.

♦ Without Built-in Water Tank.

◆ Automatic program control of the whole process of manual water injection, drainage, heating, sterilization and steam exhaust.

◆ There are multiple programs such as high-temperature appliances, low-temperature appliances, medium sterilization and heat preservation, medium dissolution and heat preservation, etc., for users to choose.

◆ Dynamic digital display of the sterilization process, fault digital code alarm.

◆ It has the function of positive pressure pulse exhaust, which completely excludes the cold air in the sterilization room and ensures the saturation of steam.

◆ It has the function of automatic control of fast steam discharge and slow steam discharge to avoid the overflow of liquid during liquid sterilization.

◆ It has the function of auto-hold when the power is off, and it will automatically continue to run from the program breakpoint after the power is turned on again.

◆ Horizontal sliding quick door structure, self-rising sealing, simple and safe operation.



◆ Over-temperature automatic protection device: When the set temperature is exceeded, the system will automatically cut off the heating power supply, and give an audible and visual alarm.

◆ Anti-dry burning protection device: When the heating pipe is dry burned due to low water level, the system will automatically cut off the heating power supply, and sound and light alarm.

◆ Door safety interlock device: Only when the door is closed in place, the power supply can be turned on to heat and generate steam; There is pressure in the inner chamber and the door cannot be opened.

◆ Safety valve with automatic pressure relief over pressure: If the opening pressure of the safety valve is exceeded, the safety valve will open and relieve pressure.

◆ Thermal insulation door cover: The sterilization door is insulated with a door cover made of thermal insulation material, which is both aesthetically pleasing and prevents the operator from burning.



Model / Parameter	Volume (L)	Chamber size（Φ×L mm）	Overall Dimensions（L×W×H mm）	Weight (Kg)	Power
YF-VS-50JC	50	Φ316×667	476×500×990	55	220V 50Hz  3.0Kw
YF-VS-80JC	80	Φ386×695	546×570×1030	65	220V 50Hz  3.9Kw
YF-VS-100JC	100	Φ386×860	546×570×1220	80	220V 50Hz  4.5Kw
YF-VS-120JC	120	Φ500×620	700×700×1020	165	380V 50Hz 7.5Kw
YF-VS-150JC	150	Φ500×780	700×700×1180	185	380V 50Hz  9.0Kw
