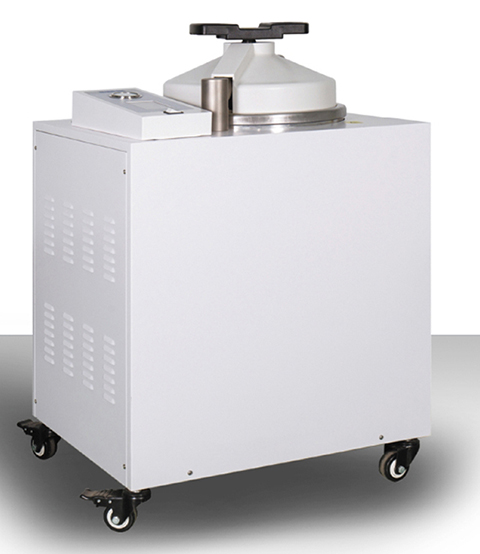

Vertical pulsating vacuum sterilizer, using saturated steam as sterilization medium, through the way of pulsating vacuum, the saturated steam completely penetrates to the surface of the article, with reliable sterilization effect easy operation, safe use, good price and so on. The sterilizer is suitable for scientific research units such as hospitals, blood stations and laboratories, and is suitable for sterilization of various surgical instruments, fabrics, dressings, utensils and other items.



◆ Design pressure:      0.3MPa

◆ Rated working pressure:     0.23MPa

◆  Pressure display accuracy:       0.1kpa

◆ Sterilization temperature:       105 ~ 136℃

◆ Temperature display accuracy :        0.1℃

◆ Maximum temperature:     136℃

◆ Dissolution temperature:        40~100℃

◆ Insulation temperature:          40~60℃

◆ Temperature uniformity:        ≤±0.5℃

◆ Cavity material:         SUS304 stainless steel

◆ Accessory:        stainless steel disinfection basket



◆ Stainless steel main structure: Stainless steel main material combination, circular cross-section.

◆ Quick-opening structure: Horizontal sliding quick-opening structure, self-expanding seal, simple operation.

◆ Built-in a variety of programs: Built-in fabric, equipment, rubber custom sterilization programs.

◆ Intelligent control system: Microcomputer program automatic control, LCD screen display working status, touch key.

◆ Multi-pulse function: Built-in vacuum pump, evaporator, to achieve negative pressure, cross-pressure positive pressure multiple pulsation exhaust.

◆ Internal circulation system: Built-in water tank to avoid the generation of aerosols, no exhaust steam.

◆ Power off hold system: Power off hold function, after re-connecting the power, automatically resume from the program breakpoint.

◆ Vacuum drying system: Fabric dryness is less than 1%, instrument dryness is less than 0.1%.



◆ Over-temperature automatic protection device: When the set temperature is exceeded, the system will automatically cut off the heating power supply, and give an audible and visual alarm.

◆ Anti-dry burning protection device: When the heating pipe is dry burned due to low water level, the system will automatically cut off the heating power supply, and sound and light alarm.

◆ Door safety interlock device: Only when the door is closed in place, the power supply can be turned on to heat and generate steam; There is pressure in the inner chamber and the door cannot be opened.

◆ Safety valve with automatic pressure relief over pressure: If the opening pressure of the safety valve is exceeded, the safety valve will open and relieve pressure.

◆ Thermal insulation door cover: The sterilization door is insulated with a door cover made of thermal insulation material, which is both aesthetically pleasing and prevents the operator from burning.
