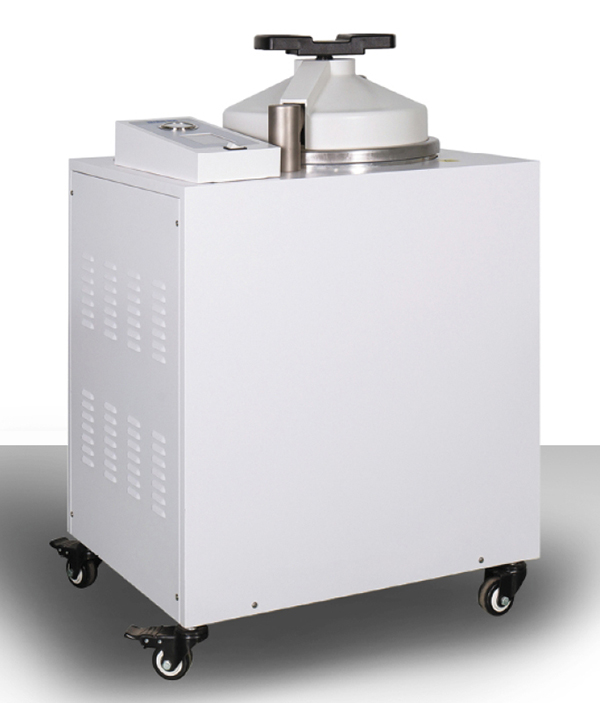

This series vertical biosafety sterilizer is a sterilization equipment designed and developed in accordance with laboratory safety requirements, with functions such as waste gas treatment and waste water treatment, which can fully ensure the safety of operators and the operating environment. The sterilizer can be widely used in the sterilization of animal carcasses, biological products, utensils, sterile clothes, medical dressings and other articles containing highly pathogenic bacteria and viruses.
Technical parameters
◆ Design pressure: 0.3MPa
◆ Rated working pressure: 0.23MPa
◆ Pressure display accuracy: 0.1kpa
◆ Sterilization temperature: 105 ~ 136℃
◆ Temperature display accuracy: 0.1℃
◆ Maximum temperature: 136℃
◆ Dissolution temperature: 40~100℃
◆ Insulation temperature: 40~60℃
◆ Temperature uniformity: ≤±0.5℃
◆ Chamber material: SUS304 stainless steel
◆ Accessories: stainless steel disinfection basket
Main performance and features
◆ Microcomputer control technology, the whole process automatic program control.
◆ Touch screen automatic display of operating process state temperature pressure time and other parameters and fault alarm information.
◆ With fabric equipment rubber medium sterilization insulation medium dissolves insulation sealed liquid (glass bottle plastic bottle soft bag) Waste and other programs for the user to choose.
◆ Can be configured with a micro printer, real-time record the sterilization process and fault alarm information.
◆ Solid items program with positive pressure pulse exhaust function, completely eliminate the sterilization room cold air, to ensure that the saturation of the steam.
◆ Liquid program with cooling back pressure automatic control function, to avoid bursting bottles and bags when cooling.
◆ It has the function of automatically maintaining the power failure, and automatically continues to run from the program breakpoint after re-connecting the power supply.
◆ Biosafety: exhaust steam is cooled by air and water, and no aerosols are produced. The exhaust outlet is equipped with high efficiency filter to avoid microbial pollution of the environment.
◆ Horizontal sliding quick-opening structure, self-expanding seal, simple and safe operation.
Safety Devices
◆ Over-temperature automatic protection device: When the set temperature is exceeded, the system will automatically cut off the heating power supply, and the sound and light alarm will be given.
◆ Anti-dry burning protection device: When the heating pipe is dry boiled due to low water level, the system will automatically cut off the heating power supply and give an audible and visual alarm.
◆ Door safety interlock device: Only when the door is closed in place, can the power supply be turned on to heat and generate steam; There is pressure in the inner chamber and the door cannot be opened.
◆ Safety valve with automatic pressure relief over pressure: If the opening pressure of the safety valve is exceeded, the safety valve will open and relieve pressure.
◆ Thermal Insulation Door Cover: The sterilization door is insulated with a door cover made of thermal insulation material, which is both aesthetically pleasing and prevents the operator from burning.
| Model / Parameter |
Volume (L) |
Chamber size（Φ×L mm） |
Overall Dimensions（L×W×H mm） |
Weight (Kg) |
Power |
| YF-VS-50B |
50 |
Φ316×667 |
476×636×990 |
85 |
220V 50Hz 3.0Kw |
| YF-VS-80B |
80 |
Φ386×700 |
546×710×1030 |
95 |
220V 50Hz 4.5Kw |
| YF-VS-100B |
100 |
Φ386×900 |
546×710×1220 |
112 |
220V 50Hz 5.4Kw |
| YF-VS-120B |
120 |
Φ500×620 |
780×850×1020 |
180 |
380V 50Hz 8.0Kw |
| YF-VS-150B |
150 |
Φ500×780 |
780×850×1180 |
210 |
380V 50Hz 9.8Kw |
