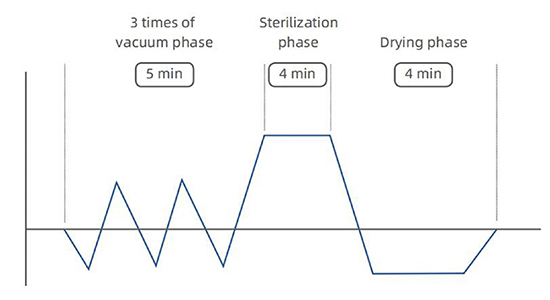

The small capability autoclave uses saturated steam as sterilization medium, through pulse vacuum way, the saturated steam completely penetrates to the surface of the article, uses high temperature saturated steam under high pressure to kill all microorganisms and their spores, the sterilization effect is reliable, is the most effective physical sterilization method. It is suitable for Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House, etc.

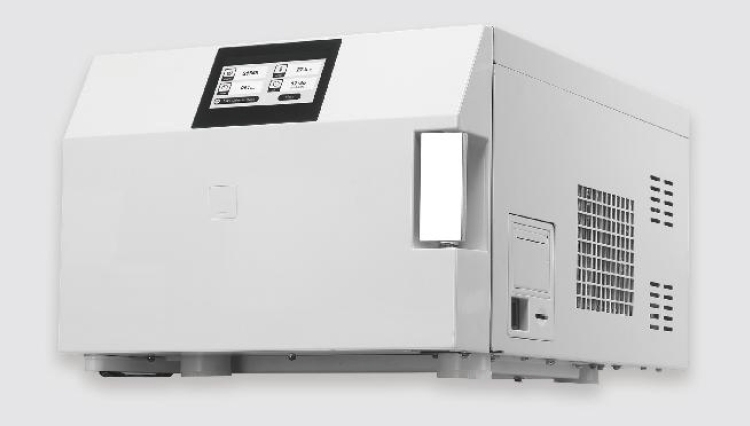

► Simple and elegant appearance design is applied to any occasions well, space-saving & fast-sterilizing.



► Big Capacity & Better Dryness

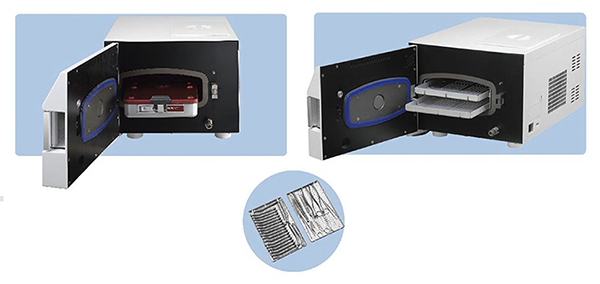

• Maximumly 2 Trays (286mmx185mm) or one complete implant box

• Aluminum alloy rectangle chamber With better dryness individually dry cycle(5mins)



• Reach from 105°C to 134°C to cover all typical sterilization needs



► Max working pressure

• 0.21-0.23MPA



► Vacuum Pump

• Imported



► Output

• Thermal printer& SD card

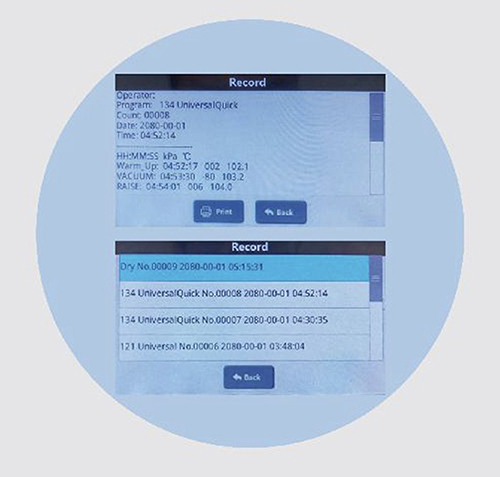

► 20 cycles recording system

• When printer without paper, the system will keep 20 cycles records.



► User password

• Yes



► Operation System

• LCD display, Touch screen, easy & Friendly



Model / Parameter	Chamber Size (L*H*D mm)	Product Size（L×W×H mm）	Packing Size（L×W×H mm）	Single Tray (mm)	G.W./N.W (Kg)	Frequency (Hz)
YF-ECP-3L	3L 175*55*280	550*365 *280	640*440*380	286*185 with caradle	40/33	50
YF-ECP-5L	5L 220*68*320	550*365*280	640*440*380	316*205 with caradle	38/31	50
