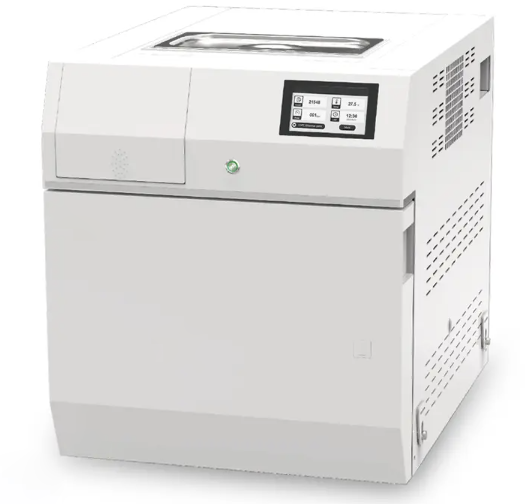

The small capability autoclave uses saturated steam as sterilization medium, through pulse vacuum way, the saturated steam completely penetrates to the surface of the article, uses high temperature saturated steam under high pressure to kill all microorganisms and their spores, the sterilization effect is reliable, is the most effective physical sterilization method. It is suitable for Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House, etc.





► Material of chamber

    Stainless steel  304



► Lock system of door

    Automatic



► Fast Drying system

◆ Artificial Intelligence (AI)  Drying

   The drying time will be adjusted automatically according to the water vapor content in the chamber. Ensure the drying is efficient and work well.

◆ Pre-setting drying

◆ Custom drying



►Standard Working Dimensions

    Minimum installation table depth is 600mm.



►Sterilization Cycle Runs Fast

    The whole fast process only costs 32minutes.



►Traceable System

◆ Process Parameter Printing

   The data of the sterilization process can be printed completely.

◆ Label printing

   The traceable data of the sterilization package can be printed in real time.

◆ SD Card

   The data of the sterilization process can behaved in SD card for check and trace at any time.

◆ Internal Memory

   The data of the latest 20sterilization process are saved in the internal memory for check and trace at any time.



► Fill and drain automatically



► Clean water tank and waste water tank are separated



► Less water consumption



► Low noise



►One-key power Switch



Model / Parameter	Chamber Size	Product Size（W×D×H mm）	Clean water tank (L)	Waste water tank (L)	G.W./N.W.(Kg)	Frequency (Hz)	Power supply
YF-YS-29L	29L ø319X397mm	576*726 *646	10	7	126/141	50	220V/50Hz/2900W
YF-YS-45L	45L  ø319X617mm	576*726 *646	10	7	133/148	50	220V/50Hz/2900W
