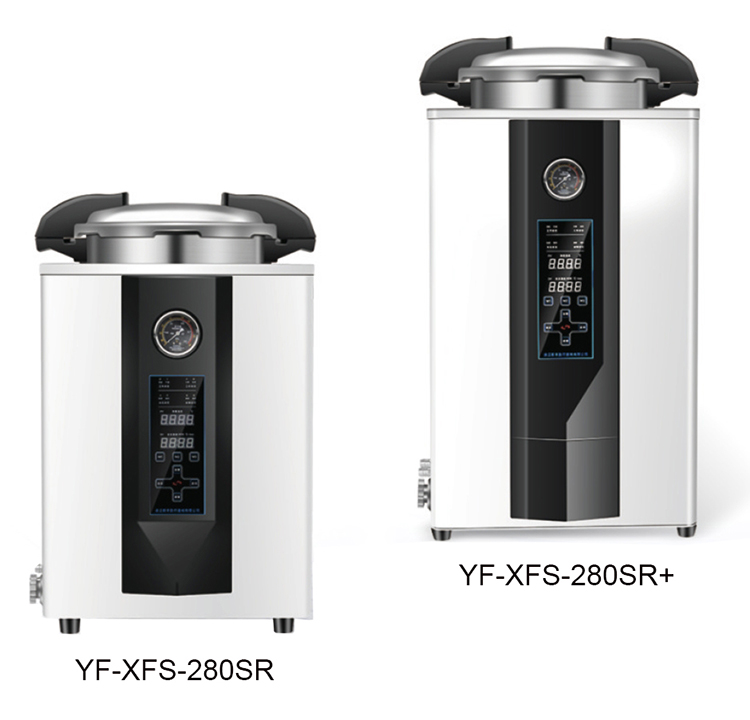

This series autoclave is a small automatic high temperature and high pressure sterilization equipment with pressure steam as the medium. It is suitable for sterilization of fabrics, tools, rubber, sealed liquid, culture medium, waste and other items in biological laboratory and other biomedical research institutes.



♦ Three Modes

 • Solid drying mode (M1)

 • Liquid insulation mode (M2)

 • Melting holding mode (M3)

♦ Digital LCD display, microcomputer control, with 3 fixed programs and 1 custom program.

♦ The shell is made of cold-rolled steel plate with electrostatic spray on the surface, and the pot body is made of 304 stainless steel.

♦ The high quality insulation material makes the whole machine performance more superior, self-expanding sealing ring.

♦ Axial double scale second reading pressure gauge, safety valve and pressure control switch double safety protection.

♦ Overpressure self-leakage 0.165MPA, overtemperature or overpressure equipment will automatically cut off the heating and alarm.

♦ Dual-purpose double-layer electric heat pipe in water and air, low water level automatically cut of the heating power supply and alarm.

♦ Bottom drainage exhaust structure, automatic discharge of cold air, automatic exhaust after the end of sterilization.

♦ Cycle counter, which records the number of times the device is used.



♦ Sterilization temperature:   50~126°C                                                     ♦ Melting temperature:     60~100°C

♦ Melting time:    0~9999min                                                                      ♦ Exhaustinterval:     0-250s

♦ Replacement temperature:   100-110°C                                                  ♦ Sterilization time:     0-9999 min

♦ Holding temperature:    40~90°C                                                             ♦ Holding time:    0~9999min

♦ Exhaust time:   0-60S                                                                              ♦ Drying time:    0-120min

♦ Temperature resolution:   0.1C                                                                ♦ Temperature fluctuation:    <+1°C

♦ Temperature uniformity:    ≤1°C                                                               ♦ Design pressure:   0.17MPa

♦ Working pressure:   0.142MPa
