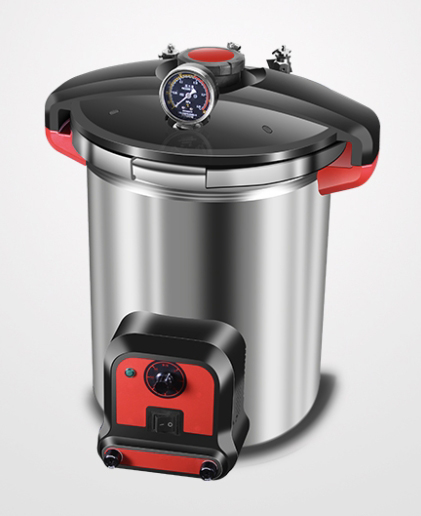

This series portable pressure steam sterilizer products are the use of pressure saturated steam to carry out rapid and reliable disinfection and sterilization equipment, suitable for medical and health undertakings, scientific research.agriculture and other units, medical equipment, dressings, glassware, solution media and other effective disinfection and sterilization.



♦ Rotary cover opening structure, one hand rotation about 70" can quickly open/close the cover, with pressure mechanical self-locking protection device.

♦ The door cover adopts reinforced nylon material and frosted surface treatment to effectively insulate the door cover and the main body to prevent burns.

♦ The machine is equipped with a vent valve, the exhaust hose and the valve are firmly connected, and the cold air at the bottom of the inner tank should be discharged.

♦ The insulation layer and ceramic fiber paper are installed between the control box and the main body to reduce the ambient temperature in the control box.

♦ The machine has the function of preventing dry burning, and will automatically cut of the heating power supply and alarm at low water level.

♦ Machine pot body and inner liner are made of SUS304 material, acid, alkali and corrosion resistant.

♦ The machine is equipped with a full-opening safety valve, overpressure self-discharge 0.165MPa.

♦ Double scale second reading pressure gauge with self-expanding seal ring.

♦ Knob timing 60 minutes, automatic stop after sterilization.

♦ The machine has thermal protection and overcurrent protection.



Model / Parameter	Capacity	Power source	Power	Sterilization room size	Net Weight	Package size
YF-XFS-300	12L	220V	2.0Kw	Φ280×150mm	9.5Kg	455*440*495mm
YF-XFS-300A	18L	220V	2.0Kw	Φ280×220mm	10.3Kg	455*440*565mm
YF-XFS-300A+	24L	220V	2.0Kw	Φ280×290mm	10.9Kg	455*440*615mm
