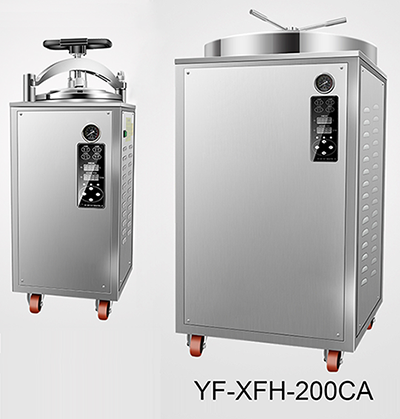

The electric thermal pressure steam sterilizer is a rapid and reliable disinfection and sterilization equipment using pressure saturated steam. It is suitable for medical and health institutions, scientific research, agriculture and other units to effectively disinfect and sterilize medical instruments, dressings, glassware, solution media and so on.



◆ Handwheel door opening structure

◆ Mechanical safety interlocking device

◆ Computer controlled automatic cycle sterilization program

◆ Digital window LCD display working status

◆ Arbitrary temperature setting (50°C-134°C)

◆ Time set at will (0-9999 minutes)

◆ Overpressure self-discharge 0.22Mpa

◆ Automatic shutdown after sterilization buzzer reminder

◆ Cycle counter

◆ Stainless steel material

◆ Optional functions

   • Automatic water intake, automatic exhaust function

   • With drying function

   • Printing with F0 value sterilization effect



Model / Parameter	Capacity	Power source	Power	Sterilization room size	Net Weight	Package size
YF-XFS-30CA	30L	220V	3.0Kw	Φ280×400mm	47Kg	510*510*1170mm
YF-XFS-40CA	40L	220V	3.5Kw	Φ340×425mm	55Kg	570*570*1250mm
YF-XFS-50CA	50L	220V	3.5Kw	Φ340×525mm	58Kg	570*570*1300mm
YF-XFS-75CA	75L	380V	4.5Kw	Φ380×530mm	77Kg	630*630*1400mm
YF-XFS-100CA	100L	380V	6.0Kw	Φ500×560mm	120Kg	660*660*1420mm
YF-XFS-150CA	150L	380V	6.0Kw	Φ500×760mm	130Kg	660*660*1520mm
YF-XFS-200CA	200L	380V	8.0Kw	Φ600×760mm	180Kg	790*790*14800mm
