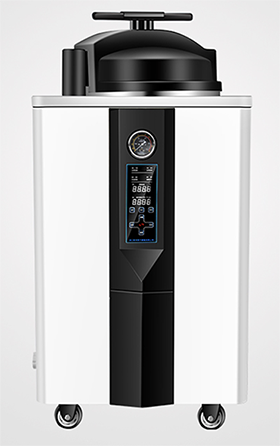

The high pressure steam sterilizer is a rapid and reliable disinfection and sterilization equipment using pressure saturated steam. It is suitable for medical and health institutions, scientific research, agriculture and other units to effectively disinfect and sterilize medical instruments, dressings, glassware, solution media and so on.



♦ Handwheel type open cover structure, with pressure mechanical self-locking and closed cover self-check double protection.

♦ The door cover is made of enhanced nylon material and matte surface treatment, which effectively insulates the door cover and the main body to prevent burns.

♦ The shell is made of cold-rolled steel plate with electrostatic spray on the surface, and the pot body is made of 304 stainless steel.

♦ There are quick maintenance inspection Windows on both sides of the machine, and the pot body has a verification interface

♦ Digital LCD display, microcomputer control, with 3 fixed programs and 1 custom program

  • (M1) Solid drying mode

  • (M2) liquid holding mode

  • (M3) melting holding mode

♦ The high quality insulation material makes the whole machine performance more superior, self-expanding sealing ring.

♦ Axial double scale second reading pressure gauge, safety valve and pressure control switch double safety protection.

♦ Overpressure self-leakage 0.24MPA, overtemperature or overpressure equipment will automatically cut off the heating and alarm.

♦ The device will automatically cut off the heating power supply and alarm when the water level is low.

♦ Bottom drainage exhaust structure, automatic discharge of cold air, automatic exhaust after the end of sterilization.

♦ Cycle counter, which records the number of times the device is used.

◆ Three optional functions

  • Automatic water intake function

  • With drying function

  • Printing with FO value sterilization effect



♦ Sterilization temperature:     50~135℃                                                        ♦ Melting temperature:     60~100℃

♦ Melting time:    0~9999min                                                                          ♦ Exhaust interval:    0-250s

♦ Replacement temperature:    100-110℃                                                     ♦ Sterilization time:    0-9999min

♦ Holding temperature:    40~90°C                                                                ♦ Holding time:    0~9999min

♦ Exhaust time:    0-60s                                                                                 ♦ Design pressure:    0.3MPA

♦ Temperature resolution:    0.1℃                                                                  ♦Temperature fluctuation:   < +1℃

♦ Temperature uniformity:     ≤1℃                                                                  ♦ Exhaust frequency:   0-9 times

♦ Working pressure:    0.21MPA



Model / Parameter	Capacity	Power source	Power	Chamber size	Basket size	Net Weight	Package size
YF-ZY-35SR	35L	220V	3.5Kw	Φ386*300mm	340*280mm 1PC	78Kg	680*620*1020mm
YF-ZY-50SR	50L	220V	3.5Kw	Φ386*400mm	340*190mm 2PCS	83Kg	680*620*1120mm
YF-ZY-60SR	60L	220V	3.5Kw	Φ386*480mm	340*190mm 1PC 340*280mm 1PC	88Kg	680*620*1200mm
YF-ZY-80SR	80L	220V	5.2Kw	Φ386*630mm	340*280mm 1PC 340*330mm 1PC	95Kg	680*620*1350mm
YF-ZY-100SR	100L	220V	5.2Kw	Φ386*780mm	340*280mm 2PCS 340*190mm 1PC	103Kg	680*620*1500mm
