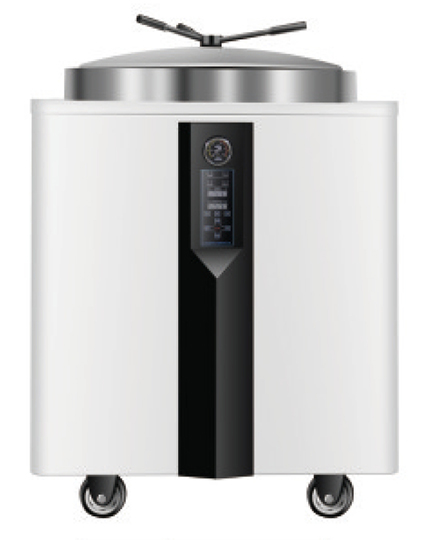

The high pressure steam sterilizer is a rapid and reliable disinfection and sterilization equipment using pressure saturated steam. It is suitable for medical and health institutions, scientific research, agriculture and other units to effectively disinfect and sterilize medical instruments, dressings, glassware, solution media and so on.



♦ Handwheel clamshell open cover structure, with pressure electronic self-locking and closed cover self-check double protection.

♦ The door cover is made of 304 stainless steel with electroplated black surface treatment.

♦ The shell is made of cold-rolled steel plate with electrostatic spray on the surface, and the pot body is made of 304 stainless steel.

♦ There are quick maintenance inspection Windows on both sides of the machine, and the pot body has a verification interface.

♦ Digital LCD display, microcomputer control, with 3 fixed programs and 1 custom program

   • (M1) Solid drying mode

   • (M2) liquid holding mode

   • (M3) melting holding mode

♦ The high quality insulation material makes the whole machine performance more superior, self-expanding sealing ring.

♦ Axial double scale second reading pressure gauge, safety valve and pressure control switch double safety protection.

♦ Overpressure self-leakage 0.24MPA, overtemperature or overpressure equipment will automatically cut off the heating and alarm.

♦ The device will automatically cut off the heating power supply and alarm when the water level is low.

♦ Bottom drainage exhaust structure, automatic discharge of cold air, automatic exhaust after the end of sterilization.

♦ Cycle counter, which records the number of times the device is used

◆ Three optional functions

  • Automatic water intake function

  • With drying function

  • Printing with FO value sterilization effect



♦ Sterilization temperature:     50~135℃                                                        ♦ Melting temperature:     60~100℃

♦ Melting time:    0~9999min                                                                          ♦ Exhaust interval:    0-250s

♦ Replacement temperature:    100-110℃                                                     ♦ Sterilization time:    0-9999min

♦ Holding temperature:    40~90°C                                                                 ♦ Holding time:    0~9999min

♦ Exhaust time:    0-60s                                                                                  ♦ Design pressure:    0.26MPA

♦ Temperature resolution:    0.1℃                                                                  ♦ Temperature fluctuation:   < +1℃

♦ Temperature uniformity:     ≤1℃                                                                  ♦ Exhaust frequency:   0-9 times

♦ Working pressure:    0.21MPA



Model / Parameter	Capacity	Power source	Power	Chamber size	Basket size	Net Weight	Package size
YF-ZY-150SR	150L	220V	8.0Kw	Φ600×600mm	550*220mm 2PCS	190Kg	930*1040*1330mm
YF-ZY-200SR	200L	220V	8.0Kw	Φ600×760mm	550*220mm 3PCS	207Kg	930*1040*1480mm
