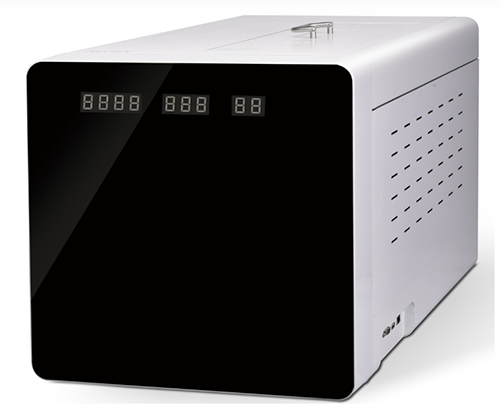

The table type sterilizers are safely auto-controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.





♦ New Interface

Touch digital LCD screen can display the information of temperature, pressure, time, operating state, fault alar,etc. Sterilization information is more intuitive, convenient for users to observe the status of the equipment.



♦ German Technology

Automatic high pressure steam sterilizer has a long service life with innovative craft and attractive appearance.



♦ Automatic Over-temperature Protection Device

Once the temperature of chamber exceeds the set temperature, the system will automatically cut off the heating power supply and display an alarm.



♦ Safety Door Interlock

Electronic door lock is adopted. Only when the door is completely closed, the controller can then be connected with power supply. If there is pressure in the chamber or the power is not connected, the door mechanism will be locked the door cannot open, ensure the safety of personnel and goods.



♦ Fast Sterilization Process

Three times of vacuum sterilization can be completed within 35 minutes, each time 15 minutes longer, saving 40% of electricity, saving 700 degrees of electricity per year, and improving the service life of sterilizer.



♦ Water cooling system

With the internal circulating water cooling system, the water outlet temperature is below 40℃, so that the water drainage and exhaust steam can be separated from the vacuum pipe & improving the efficiency and service life of the vacuum pump. It saves sterilization process.

♦ Innovative steam generator

Innovative steam generator design combined with optimization program to solve the previous steam generator blocking and sealing ring aging leakage and other technical problems. Leading domestic steam generation is from German technology, no need cleaning during all service life, safe and reliable.



♦ Normal Working Condition

• Ambient temperature range: +5℃ ~ +40℃

• Relative humidity range:  ≤ 85 %

• Water: Distilled water/Purified water



♦ Remote monitoring

• Optional computer or smart phone

• Pad to remote monitoring



Model / Parameter	Capacity	Power source	Power	Chamber size	Net Weight	Product size
YF-MAX-18L-II	18L	110V-240V/50Hz-60Hz	2.0Kw	Φ250*355mm	52Kg	660*425*465mm
YF-MAX-23L-II	23L	110V-240V/50Hz-60Hz	2.0Kw	Φ250*465mm	56Kg	660*425*465mm
