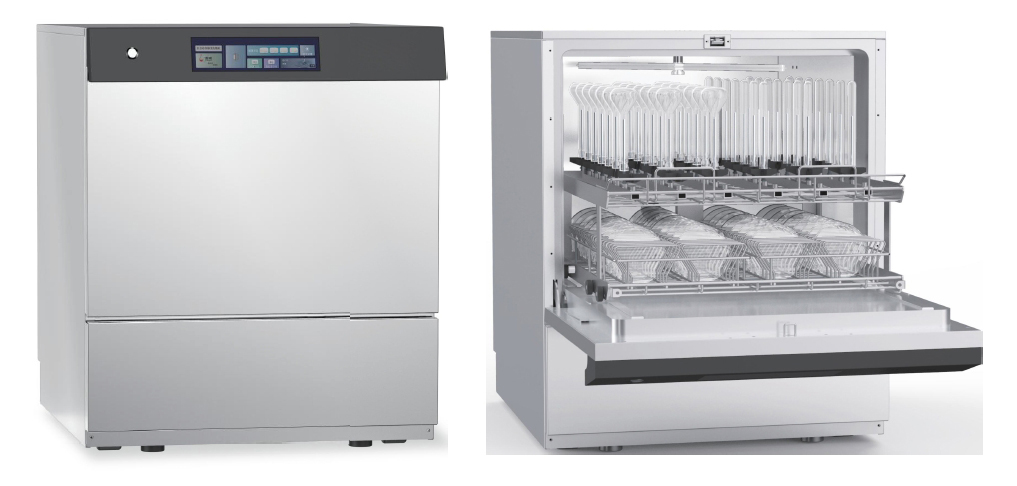

It can be embedded under the test bench or placed on the test bench, external dimension:  640x726x778(LxWxH), the area is less than 0.5 square meter, especially suitable for the scientific research and education, economical and practical.

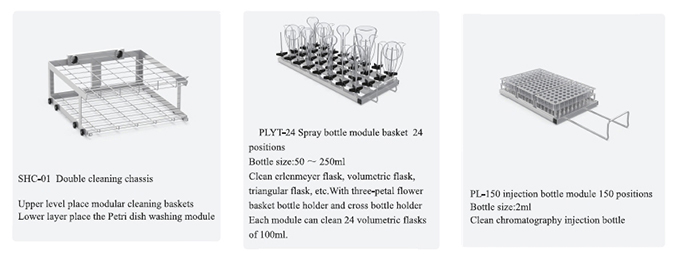

Two layers, with two baskets on each layer,  it can put 4 modular baskets at a time, flexible combination to adapt to various utensils, volumetric flasks, automatic sample bottles, headspace bottles, pipettes, test tubes, Erlenmeyer flasks. Round bottom flasks, Reagent bottles, measuring cylinders, etc. The double-layer basket can simultaneously clean 64 100ml volumetric flasks and 32 sets of 90mm caliber petri dishes or wide-mouth utensils, and clean 300 2ml chromatographic injection bottles at a time.



The shell material is 304 stainless steel and the cleaning chamber is 316L stainless steel. The volume of cleaning chamber is 58L and the cleaning chamber were formed directly without welding points.



Microcomputer chip control technology(non-PLC) with 8.8inch full color OLED LCD touch screen, including 30 standard procedures and 120 self-defined procedures.

Cleaning program and other data can display on screen in real-time.



Variable frequency soft-start function control the circulation pump from 0-400L/min. Pipeline pressure monitor monitors the pressure of the main pipeline in real time.



Electronic safety lock, EULA electric door opening and closing technology, the experimenter can set the door opening temperature limit.

Water heating over temperature protection, hot air heating overtemperature protection, water pump over temperature protection, fan over temperature protection.

The instrument will recovery automatically after water cut and memory if the power cut off.



Prevent debris from entering the pipeline and causing blockage



New back water supply method with two parallel water supply, Basket adopts FL-EXCH module design, every 1/2 module can be exchanged freely
