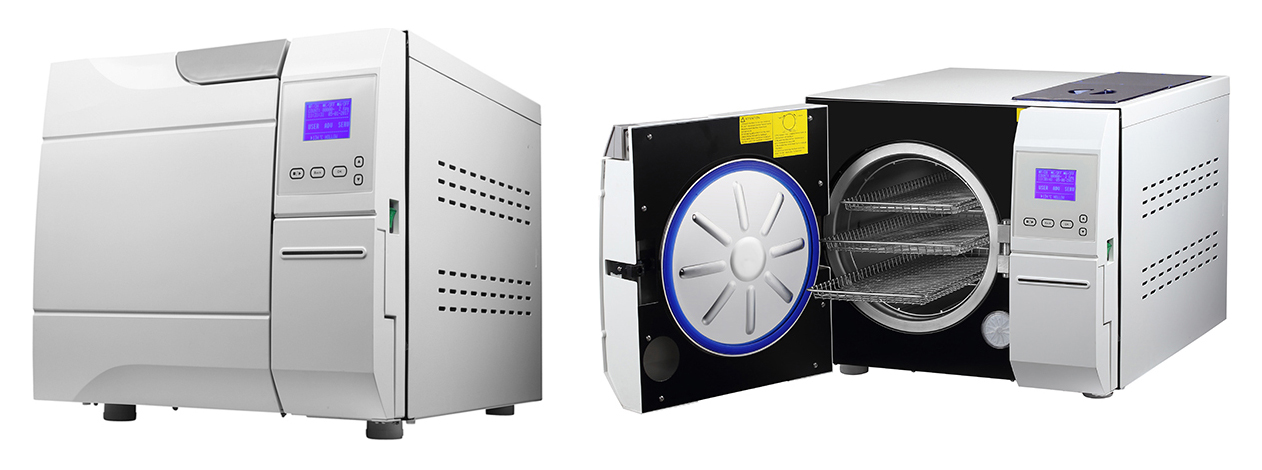

Tabletop class B vacuum high pressure autoclave is a specialized piece of equipment commonly used in healthcare and research settings for the sterilization of medical instruments, laboratory equipment, and other items. For example, Class B autoclave for dental can effectively sterilize a wide range of dental instruments, including solid, hollow, and porous items. They can handle everything from handpieces to surgical instruments. These autoclaves are a crucial tool for maintaining a sterile environment and ensuring the safety of patients, healthcare professionals, and researchers.
♦ Compliance with standards
It is designed to meet stringent international standards for sterilization like CE, RoHS, to ensure that dental practices comply with all necessary regulations.
♦ Stainless steel material
It is constructed from high-quality stainless steel. This material is durable, corrosion-resistant, and easy to clean, making it well-suited for medical and laboratory environments where hygiene is paramount.
♦ Language available
English, French£¬Italian, German,Chinese
♦ Vacuum technology
It use vacuum technology to ensure that air is effectively removed from the sterilization chamber, which allows for more thorough sterilization and the penetration of steam into small, challenging-to-reach areas.
♦ Various cycles is optional
A variety of sterilization cycles are available, including standard cycles for unwrapped and wrapped instruments, as well as customized cycles for specific instruments and loads. This flexibility is essential for dental professionals.
♦ High Pressure Autoclave Advanced Control Systems
it is equipped with advanced control systems that allow precise monitoring and control of temperature, pressure, and drying cycle times. This reduces the risk of contamination during storage.
♦ Bacteria filter
High quality, 2µm precision
♦ Advanced monitoring & documentation
it is equipped built-in monitoring systems including built-in printer and data logging to record sterilization cycles for quality control and documentation purposes.
♦User-friendly interface
Be equipped with user-friendly interfaces that make them easy to operate. It has touch screen LCD display for use's intuitive control. Operators can set sterilization parameters and monitor the progress of the cycle.
♦ Safety devices
• Over-temperature automatic protection device
¡¡When the set temperature is exceeded, the system will automatically cut off the heating power supply, and give an audible and visual alarm.
• Anti-dry burning protection device
¡¡When the heating pipe is dry burned due to low water level, the system will automatically cut off the heating power supply, and sound and light alarm.
• Door safety interlock device
¡¡Only when the door is closed in place, the power supply can be turned on to heat and generate steam; There is pressure in the inner chamber and the door cannot be opened.
• Safety valve with automatic pressure relief over pressure
¡¡If the opening pressure of the safety valve is exceeded, the safety valve will open and relieve pressure.
♦ Built-In Water Tanks
With built-in water tank for easy water filling and draining, simplifying maintenance.
♦ Water quality monitoring
It always monitors the quality of the water used in the sterilization process to maintain optimal performance and prevent scale buildup.
Technical parameters
| ¡¡Technical Data / Model |
YF-ECS-12L |
YF-ECS-18L |
YF-ECS-23L |
| ¡¡Sterilizing chamber volume |
12L §æ20X36mm |
18L §æ25X35mm |
23L §æ25X45mm |
| ¡¡Material of chamber |
Stainless steel 304 |
Stainless steel 304 |
Stainless steel 304 |
| ¡¡Screen type & size & color |
LCD display, 60X42.5mm, white |
LCD display, 60X42.5mm, white |
LCD display, 60X42.5mm, white |
| ¡¡Power |
220V/50Hz, 2.4Kw |
220V/50Hz, 2.4Kw |
220V/50Hz, 2.4Kw |
| ¡¡Max working pressure |
0.21-0.23Mpa |
0.21-0.23Mpa |
0.21-0.23Mpa |
| ¡¡Working temperature |
105 – 134¡æ |
105 – 134¡æ |
105 – 134¡æ |
| ¡¡Lock system of door |
Mechanic+electrical lockers |
Mechanic+electrical lockers |
Mechanic+electrical lockers |
| ¡¡User password |
Yes |
Yes |
Yes |
| ¡¡Output |
Printer+USB |
Printer+USB |
Printer+USB |
| ¡¡G.W/N.W (kg) |
59/51Kgs |
61/53Kgs |
63/55Kgs |
| ¡¡Product size |
650X500X430mm |
650X500X430mm |
650X500X430mm |
| ¡¡Package size |
730X570X510mm |
730X570X510mm |
770X570X510mm |
| ¡¡Min size of table for installation |
540 x 415mm |
540 x 415mm |
540 x 415mm |
