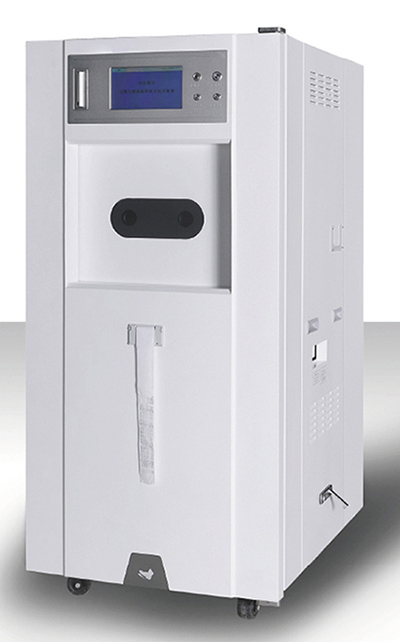

Low temperature plasma sterilizer in low temperature, vacuum state. Plasma is generated through the action of high-frequency electric field, which chemically reacts with proteins and nucleic acids in microorganisms to destroy and disturb the life activities of microorganisms. Then hydrogen peroxide is used as a medium to further kill microorganisms.



The equipment is mainly suitable for sterilization of rigid endoscope, flexible endoscope, hysteroscope, laparoscope, laryngoscope, ophthalmic lens, electrocautery equipment, electric knife wire, metal. glass, silicone and other non-heat and moisture resistant surgical instruments, and is widely used in the operating room, supply room and other key departments of medical institutions.





♦ Lift door structure

   Anti-pinch design, encounter obstacles in advance alarm and do not contact obstacles, to ensure personnel safety.

♦ Green environmental protection

   The sterilizer uses hydrogen peroxide solution, no harmful substances remain, no drainage or exhaust.

♦ Intelligent control

   PLC control, touch screen man-machine interface, U disk storage function, one-click start, easy to operate.

♦ Precise measurement

   Precise injection of sterilizer, reducing the cost of sterilization under the premise of ensuring the sterilization effect.

♦ Low temperature sterilization

   Sterilization temperature is 50±5℃, low temperature without humidity. no damage to the bactericide.

♦ High sterilization efficiency

   Rectangular sterilization room design, high instrument loading rate, improve space utilization.

♦ Stable sterilization

   Aluminum alloy is used in the inner chamber, which has the characteristics of anti-corrosion, fast heat conduction, and more uniform temperature.

♦ Automatic detection

   The sterilization process is monitored in real time, with automatic fault detection function, and the cause of the failure is displayed.

♦ Purification d evice

   Hydrogen peroxide purification device, which can effectively improve the concentration of hydrogen peroxide and improve the sterilization effect.



Model	Volume  (L)	Chamber size（W×H×D mm）	Overall dimension（L×W×H mm）	Weight (Kg)	Power
YF-LTPS-60	60	260x300x750	700x730x1060	160	380V/220V, 50Hz, 3KW
YF-LTPS-100	100	450x400x750	800x1050x1750	340	380V/220V, 50Hz, 3.6KW
YF-LTPS-150	150	520x450x800	860x1050x1800	390	380V/220V, 50Hz, 4.2KW
