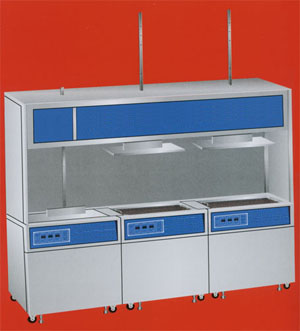

This appliance is designed as a numerical control full-automatical ultrasonic cleaning assembly line equipment according to the special features of hospital. It composes with three processes: Ultrasonic cleaning, ultrasonic fulling and thermal wind drying, and is mainly available for hospital's micro-vessel knife, haemostatic forceps, biopsy forceps, scissors, syringe needle, all sorts of syringe, test tube, sheet glass, exchanging bowl, all sorts of disher, drum, pressure indicator with radioactivity, contamination for a big quantity, high-precise cleaning requirements. It is the essential instrument in OR, supply room and disinfector center of the hospital.

Main Function :
Digital indication of equipment's manufacturing date.
Digital indication of add-up working time.
Digital indication of ultrasonic cleaning time of memory and setting.
Digital indication of ultrasonic cleaning power of memory and setting.
Digital indication of heating and actual temperature of memory and setting.
Digital indication of drying power of memory and setting.
Digital indication of heating and actual temperature of memory and setting.
Digital indication of over-temperature, over-voltage, over-current protection.
Digital indication of low level, no liquid protection indication.
Adopting the electrical-control supplying available polypeptidase for the cleaning tank.
Adopting the electrical-control infusion and discharging.
Adopting electrical-control digital manipulator lifting and horizontal moving apparatus.
The adding-up working time can be 999999 hours.
Adopting the chip microprocessor for the operation software.
The transmitting power for each ultrasonic transducer of the cleaner is 50W.
Adopting the stainless-steel and auto-argon arc welding for the 3 floors of instrument cleaning shelfs.
Adopting the stainless-steel net sieve and auto-argon arc welding for the instrument trays.
Adopting the stainless steel, square tube and auto-argon arc welding for the manual trolley.
Adopting the auto-argon arc welding workmanship for the inner and outer shell.
Cleaning process :
Put instrument into the trays---put the trays into the cleaning shelf---put the cleaning shelf into the cleaning trolley---put the cleaning trolley into the cleaning tank---put the cleaning shelf over the cleaning tank---setting manipulator lifting time---setting manipulator horizontal moving time---setting manipulator working time---electrical-control infusion of cleaning water into the cleaning tank--- electrical-control supplying available polypeptidase---setting heating temperature---setting ultrasonic cleaning time---setting ultrasonic cleaning power---electrical-control infusion of soft water into the fulling tank---auto-overflow water---setting heating temperature---setting ultrasonic fulling time---setting ultrasonic fulling power---setting heating drying temperature---setting thermal wind drying time---setting thermal wind drying power---material unloading and sterilizing in the autoclave---48 trolleys can be done everyday
Main Technological Data:
Model Outer Dimension Inner Dimension of Cleaning Tank single tank cap- acity Ultra- sonic Frequ- ency ultra- sonic clea- ning power ultrasonic fulling tank Drying Power Adjustable Power cleaning heating power fulling heating power drying heating power Adjustable Temperature Price (FOB NINGBO USD) LxWxH(mm) LxWxH(mm) (L) (KHz) (W) (W) (W) (%) (W) (W) (W) (°C) KQ-T1200DY 2400x440x1800 600x200x350 48 40 600 600 500 40-100 3000 10000 3000 20-80 14502 KQ-T1200DY.D 2400x440x1800 600x200x350 48 40 600 600 500 40-100 Steam Steam Steam 20-80 15609 KQ-T2000DY 2400x540x1800 600x300x350 72 40 1000 1000 500 40-100 4000 10000 4000 20-80 22620 KQ-T2000DY.D 2400x540x1800 600x300x350 72 40 1000 1000 500 40-100 Steam Steam Steam 20-80 23727 KQ-T2400DY 2400x640x1800 600x400x350 96 40 1200 1200 500 40-100 5000 10000 5000 20-80 27171 KQ-T2400DY.D 2400x640x1800 600x400x350 96 40 1200 1200 500 40-100 Steam Steam Steam 20-80 28278 KQ-T3000DY 2400x740x1800 600x500x350 120 40 1500 1500 1000 40-100 7000 10000 7000 20-80 33813 KQ-T3000DY.D 2400x740x1800 600x500x350 120 40 1500 1500 1000 40-100 Steam Steam Steam 20-80 34920 KQ-T3600DY 2400x840x1800 600x600x350 144 40 1800 1800 1000 40-100 8000 10000 8000 20-80 40701 KQ-T3600DY.D 2400x840x1800 600x600x350 144 40 1800 1800 1000 40-100 Steam Steam Steam 20-80 41808
