     Large Ultrasonic Cleaners    Medical Numerical Control Multi-tanks Full-automatical Ultrasonic Cleaners

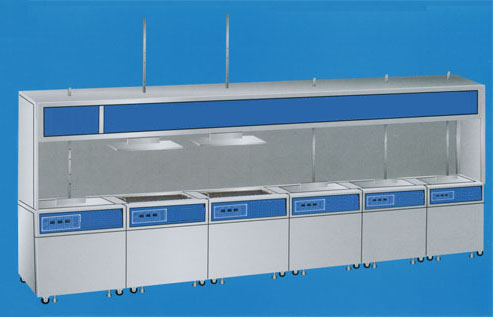

Medical Numerical Control Six-tank Full-automatical Ultrasonic Cleaner

This appliance is designed as a numerical control full-automatical ultrasonic cleaning assembly line equipment according to the special features of hospital. It composes with six processes: Pre-dipping, ultrasonic cleaning, ultrasonic fulling, high-pressure flushing, dipping-oil boiling and thermal wind drying, and is mainly available for hospital's micro-vessel knife, haemostatic forceps, biopsy forceps, scissors, syringe needle, all sorts of syringe, test tube, sheet glass, exchanging bowl, all sorts of disher, drum, pressure indicator with radioactivity, contamination for a big quantity, high-precise cleaning requirements. It is the essential instrument in OR, supply room and disinfector center of the hospital.


Main Function :

Digital indication of equipment's manufacturing date.
Digital indication of add-up working time.
Digital indication of ultrasonic cleaning time of memory and setting.
Digital indication of ultrasonic cleaning power of memory and setting.
Digital indication of heating and actual temperature of memory and setting.
Digital indication of ultrasonic power of memory and setting.
Digital indication of dipping-oil boiling time of memory and setting.
Digital indication of dipping-oil boiling power of memory and setting.
Digital indication of water-flow high-pressure flushing time of memory and setting.
Digital indication of water-flow high-pressure flushing power of memory and setting.
Digital indication of thermal wind drying time of memory and setting.
Digital indication of thermal wind drying power of memory and setting.
Digital indication of heating and actual temperature of memory and setting.
Digital indication of over-temperature, over-voltage, over-current protection.
Digital indication of low level, no liquid protection indication.
Adopting the electrical-control supplying available polypeptidase for the cleaning tank.
Adopting the electrical-control supplying available oil for the dipping-oil boiling tank.
Adopting the electrical-control infusion of water and discharging for the equipment.
Adopting electrical-control digital manipulator lifting and horizontal moving apparatus.
The adding-up working time can be 999999 hours.
Adopting the chip microprocessor for the operation software.
The transmitting power for each ultrasonic transducer of the cleaner is 50W.
Adopting the stainless-steel and auto-argon arc welding for the 3 floors of instrument cleaning shelfs.
Adopting the stainless-steel net sieve and auto-argon arc welding for the instrument trays.
Adopting the stainless steel, square tube and auto-argon arc welding for the manual trolley.
Adopting the auto-argon arc welding workmanship for the inner and outer shell.

Cleaning process :
Put instrument into the trays---put the trays into the cleaning shelf---put the cleaning shelf into the cleaning trolley---put the cleaning trolley into the pre-dipping tank---put the cleaning shelf over the pre-dipping tank---setting manipulator lifting time---setting manipulator horizontal moving time---setting manipulator working time---electrical-control infusion of cleaning water into the pre-dipping tank---setting heating temperature---setting pre-dipping time---setting pre-dipping power---electrical-control infusion of cleaning water into the cleaning tank--- electrical-control supplying available polypeptidase---setting heating temperature---setting ultrasonic cleaning time---setting ultrasonic cleaning power---electrical-control infusion of soft water into the fulling tank---auto-overflow water---setting heating temperature---setting ultrasonic fulling time---setting ultrasonic fulling power---electrical-control infusion of purified water into the flushing tank---setting high-pressure flushing time---setting high-pressure flushing power---electrical-control infusion of purified water into dipping-oil boiling tank---electrical-control supplying available oil---setting dipping-oil boiling time---setting dipping-oil boiling power---setting thermal wind drying time---setting thermal wind drying power---material unloading and sterilizing in the autoclave---48 trolleys can be done everyday.

Main Technological Data:
Model Outer Dimension Inner Dimension of Cleaning Tank  single tank
cap-
acity
Ultra-
sonic Frequ-
ency
Pre-
dip-
ping Power
ultra-
sonic
clea-
ning power
ultra-
sonic fulling tank
Flu-
shing Power
dipping-oil power Drying Power Adjustable Power heating power of each tank of pre-dipping, fulling and flushing heating power of each tank of cleaning, boiling and drying Adjustable Temperature Price(FOB NINGBO USD)
LxWxH(mm)  LxWxH(mm)  (L)  (KHz)  (W)   (W) (W)  (W)  (W)  (W)   (%) (W)  (W)  (ˇăC)
KQ-
T1200
DY
4800x440x1800 600x200x400 48 40 500 600 600 1500 500 500 40-100 10000 3000 20-95 25941
KQ-
T1200
DY.D
4800x440x1800 600x200x400 48 40 500 600 600 1500 500 500 40-100 Steam Steam 20-95 28155
KQ-
T2000
DY
4800x540x1800 600x300x400 72 40 500 1000 1000 1500 500 500 40-100 10000 4000 20-95 39225
KQ-
T2000
DY.D
4800x540x1800 600x300x400 72 40 500 1000 1000 1500 500 500 40-100 Steam Steam 20-95 41439
KQ-
T2400
DY
4800x640x1800 600x400x400 96 40 500 1200 1200 1500 500 500 40-100 10000 5000 20-95 47097
KQ-
T2400
DY.D
4800x640x1800 600x400x400 96 40 500 1200 1200 1500 500 500 40-100 Steam Steam 20-95 49311
KQ-
T3000
DY
4800x740x1800 600x500x400 120 40 500 1500 1500 1500 500 1000 40-100 10000 7000 20-95 58413
KQ-
T3000
DY.D
4800x740x1800 600x500x400 120 40 500 1500 1500 1500 500 1000 40-100 Steam Steam 20-95 60627
KQ-
T3600
DY
4800x840x1800 600x600x400 144 40 500 1800 1800 1500 500 1000 40-100 10000 8000 20-95 70467
KQ-
T3600
DY.D
4800x840x1800 600x600x400 144 40 500 1800 1800 1500 500 1000 40-100 Steam Steam 20-95 72681

The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
