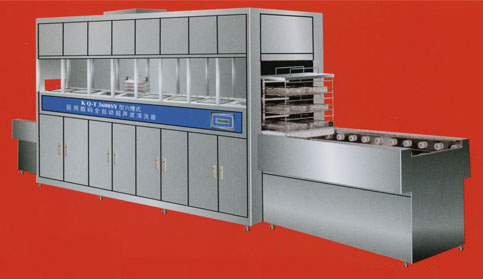

This appliance is designed as a digital full-automatical ultrasonic cleaning assembly line equipment according to the special features of hospital. It composes with six processes: Pre-dipping, ultrasonic cleaning, ultrasonic fulling, high-pressure flushing, dipping-oil boiling and thermal wind drying, and is mainly available for hospital’s micro-vessel knife, haemostatic forceps, biopsy forceps, scissors, syringe needle, all sorts of syringe, test tube, sheet glass, exchanging bowl, all sorts of disher, drum, pressure indicator with radioactivity, contamination for a big quantity, high-precise cleaning requirements. It is the essential instrument in OR, supply room and disinfector center of the hospital.
Main Function :
Digital indication of equipment’s manufacturing date, number, using date, add-up working time.
Indication of the equipment’s operation procedure and main technical specifications.
Indication of each procedure of function setting and running course.
The equipment has 5 fixed programs for your selecting, and a special program for setting by yourself.
Indication of over-temperature, over-voltage, over-current, alarm and shunt protection of lifting reduction gear, horizontal moving reduction gear, ultrasound generator, transducer, heater, fluid infusion pump, drain sewage pump.
Indicating the running state of auto pre-dipping, cleaning, fulling, flushing, dipping-oil boiling and thermal wind drying.
Indication of low level, no liquid, alarm and shunt protection for pre-dipping tank, cleaning tank, fulling tank, flushing tank and dipping-oil boiling tank.
Adopting digital smart software for the operation precedure.
Polypetidase will be added into cleaning tank automatically and timely.
Anti-rust oil will be added into dipping-oil boiling tank timely.
The transmitting power for each ultrasonic transducer of the cleaner is 50W.
The adding-up working time can be 999999 hours.
Adopting the best-quality stainless-steel for the inner and outer shell. Cleaning process : Put instrument into the trays---put the trays into the cleaning shelf---put the cleaning shelf into the cleaning trolley---press P1-P5 key---material auto loading---auto infusion of cleaning water into the pre-dipping tank--- auto-flow water---auto heating---auto ultrasonic pre-dipping---auto infusion of cleaning water into cleaning tank---auto supplying available polypeptidase---auto heating---auto ultrasonic cleaning---auto drain sewage timely---auto infusion of cleaning water into the fulling tank---auto-overflow water---auto heating---auto ultrasound fulling---auto infusion of cleaning water into the flushing tank---auto heating---auto flushing---auto infusion of soft water into the boiling tank---auto heating---auto supplying available oil---auto dipping oil and boiling---auto drain sewage timely---auto heating for the drying tank---auto thermal wind drying---material auto-unloading and sterilizing in the autoclave---48 trolleys can be done everyday   Main Technological Data: Model Outer Dimension Inner Dimension of Cleaning Tank  single tank cap- acity Ultras- onic Frequ- ency  Pre- dip- ping Power  ultra- sonic clea- ning power ultra- sonic fulling tank Flus- hing Power dipping-oil power drying power Adjustable Power heating power of each tank of pre-dipping, fulling and flushing heating power of each tank of cleaning, boiling and drying Adjustable Temperature Price(FOB NINGBO USD) LxWxH(mm)  LxWxH(mm)  (L)  (KHz)   (W)   (W) (W)  (W)  (W)  (W)   (%) (W)  (W)  (°C) KQ- T1200 SY 2660x780x2500 200x600x400 48 40 500 600 600 1500 500 500 40-100 10000 3000 20-95 49188 KQ- T1200 SY.D 2660x780x2500 200x600x400 48 40 500 600 600 1500 500 500 40-100 Steam Steam 20-95 49557 KQ- T2000 SY 3460x780x2500 300x600x400 72 40 500 1000 1000 1500 500 500 40-100 10000 4000 20-95 61488 KQ- T2000 SY.D 3460x780x2500 300x600x400 72 40 500 1000 1000 1500 500 500 40-100 Steam Steam 20-95 61857 KQ- T2400 SY 4260x780x2500 400x600x400 96 40 500 1200 1200 1500 500 500 40-100 10000 5000 20-95 67638 KQ- T2400 SY.D 4260x780x2500 400x600x400 96 40 500 1200 1200 1500 500 500 40-100 Steam Steam 20-95 68007 KQ- T3000 SY 5060x780x2500 500x600x400 120 40 500 1500 1500 1500 500 1000 40-100 10000 7000 20-95 76248 KQ- T3000 SY.D 5060x780x2500 500x600x400 120 40 500 1500 1500 1500 500 1000 40-100 Steam Steam 20-95 77478 KQ- T3600 SY 5860x780x2500 600x600x400 144 40 500 1800 1800 1500 500 1000 40-100 10000 8000 20-95 84858 KQ- T3600 SY.D 5860x780x2500 600x600x400 144 40 500 1800 1800 1500 500 1000 40-100 Steam Steam 20-95 85227
