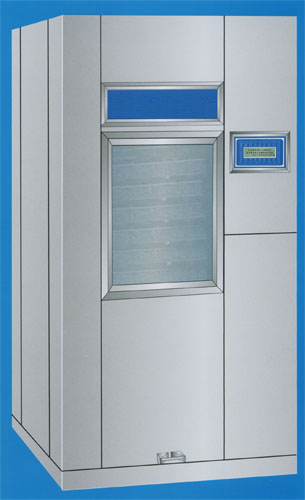

KQ-V2100SY Series Medical Digital Full-Automatic Ultrasonic Cleaner
|
According to the features of hospital, this appliance is designed completely in a cleaning tank, in which it composes with nine processes: Ultrasonic rough watering, ultrasonic cleaning-watering, high-pressure spraying, ultrasonic fulling, high-pressure spraying, dipping-oil boiling, high-pressure spraying, boiling and disinfecting, and thermal wind drying. It is designed with the most advanced technology in the world as it is an integrated unit with high-pressure flushing and ultrasonic cleaning. It has 8 stable programs for the user's selection and 1 special program for user's setting, and is mainly available for hospital¡¯s micro-vessel knife, haemostatic forceps, biopsy forceps, scissors, bottle, pumping appliance, syringe needle, all sorts of syringe, test tube, sheet glass, exchanging bowl, all sorts of dishes, drum, pressure indicator with radioactivity, contamination for a big quantity, high-precise cleaning requirements. It is the essential instrument in OR, supply room and disinfector center of the hospital. |
Main Function : |
Digital indication of equipment¡¯s manufacturing date, serial number, using date, and add-up working time.
|
Indication of the equipment¡¯s operation procedure and main technical specifications. |
The equipment has 8 fixed programs for your selecting, and a special program for setting by yourself.
|
Indication of each procedure of function setting and running course. |
Indicating the running state of auto rough watering, cleaning, fulling, flushing, dipping-oil boiling and thermal wind drying.
|
Indication of over-temperature, over-voltage, over-current and shunt protection. |
Indication of low level, no liquid and shunt protection in the cleaning tank.
|
Adopting digital smart software for the operation procedure. |
|
Cleaning process : |
|
Put instrument into the trays---put the trays into the cleaning shelf---put the cleaning shelf into the cleaning trolley---put the cleaning trolley into the cleaning tank---close the door by hand--- press P1-P8 key----auto infusion of cleaning water---auto heating---auto ultrasonic rough watering---auto drain sewage---auto infusion of cleaning water---auto supplying available polypeptidase---auto heating---auto ultrasonic cleaning---auto recovery---auto soft water spraying---auto infusion of soft water---auto heating---auto ultrasonic fulling---auto drain sewage---auto purified water spraying---auto infusion of purified water---auto supplying available oil---auto dipping-oil boiling---auto draining liquid---auto purified water spraying---auto infusion of disinfector liquid---auto boiling---auto draining liquid---auto thermal wind drying---auto stable temperature drying---auto cool wind drying---open the door by hand---material unloading and sterilizing in the autoclave |
|
Main Technological Data: |
Model |
KQ-V2100SY |
KQ-V2100SY.B |
KQ-V2100SY.D |
KQ-V2100SY.DB |
Outer Dimension |
1500x900x2000mm |
Inner Dimension of Cleaning Tank |
720x730x400mm |
inner dimension of recovery tank |
300x800x1000mm |
capacity of Cleaning |
210L |
capacity of recovery tank |
240L |
Ultrasonic Frequency |
40KHz |
Ultrasonic Power |
2100W |
water heating power |
25KW |
outer connection for steam heating |
heating power of liquid |
25KW |
outer connection for steam heating |
drying heating power |
25KW |
outer connection for steam heating |
highest sterilizing temperature |
95¡ãC |
Adjustable Time |
1-480min |
cleaning liquid pump |
100ml/min |
oil pump |
100ml/min |
disinfectant pump |
100ml/min |
open/close door |
controlling door by electrical or auto controlling door |
working noise |
60dB |
water source pressure |
0.10MPa-0.80MPa |
consumption power |
28KW |
2.5KW |
voltage |
380VAC3 phase with 5 wires |
220VACsingle phase with 3 wires |
material of cleaning tank |
stainless steel No. 316 or 304 |
inner and outer shell |
No.304 stainless steel square tube and No.304 wiredrawing board |
cleaning trolley |
pulling trolley by hand |
auto pulling trolley |
pulling trolley by hand |
auto pulling trolley |
recover tank for cleaning liquid |
Can recover and storage the cleaning liquid and auto change polypeptidase |
price of single door(FOB NINGBO USD) |
47724 |
51414 |
48954 |
52644 |
price of double door(FOB NINGBO USD) |
49938 |
53628 |
51168 |
54858 | |
|
|
The product information will probably be updated without notice, if that happens, please refer to the latest technical material. |
|
|
|
|
