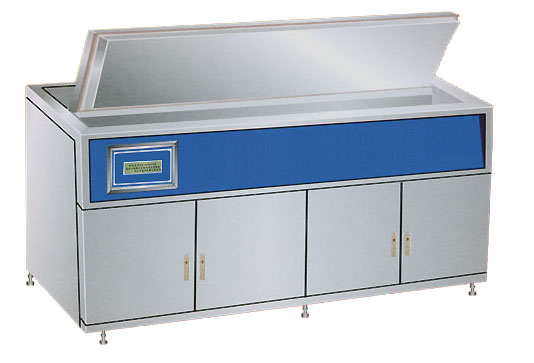

Series Digital Full-Automatic Washer Disinfector For Soft Endoscopes
 |
With the development and improvement of endoscopes technology, the endoscopes are widely used gradually. Endoscopes can be used not only to diagnose, but also to be the tool for surgical department. But the widen usage of endoscopes brings too many infection problems, especially for AIDS and hepatitis virus.
According to these features of hospital, this appliance is designed completely in a cleaning tank, in which it composes with six processes for the inner and outer of tube of the endoscopes: High-pressure rough watering with flowing and cleaning water for inner and outer of the tube of endoscopes, high-pressure cleaning with cleaning liquid, high-pressure fulling with cleaning-water, high-pressure fulling with non-germ water, disinfecting and sterilizing with disinfector liquid, and thermal heating and cool wind drying. It has 7 stable programs for the user's selection and 1 special program for user's setting, and is mainly available for hospital¡¯s rectoscopy set, stomach set, trachea set, alimentary canal set, laparoscopy set, arthroscopy set, ventriculography set, urethro cystoscopy set, hysteroscopy set, laringoscope set with radioactivity, contamination for cleaning, sterilizing and disinfecting requirements. It is the essential instrument in endoscopes room of the hospital. |
| |
|
|
Main Function : |
|
 Full-automatic high-pressure flowing for cleaning, disinfecting and sterilizing . |
Inner and outer of tube can be cleaned together by high pressure flowing water. |
Flowing water can improve the quality and speed of cleaning, disinfecting and sterilizing.
|
The instrument has no any remain after flow- pressure cleaning. |
Full automatic and seal circumstance of cleaning, disinfecting and sterilizing ensures that no any discharge of waste.
|
The liquid of cleaning, disinfector, sterilizing and alcohol will be recovered automatically. |
Press setting key, you can finish the cleaning, disinfecting and sterilizing you needs.
|
Digital indication of equipment¡¯s manufacturing date, serial number, using date, and add-up working time. |
Indication of the equipment¡¯s operation procedure and main technical specifications. |
The equipment has 7 fixed programs for your selecting, and a special program for setting by yourself. |
Press the key of O, the equipment will auto-clean all inner chambers of itself. |
Indication of each procedure of function setting and running course. |
Indicating the running state of high-pressure rough watering with flow cleaning water for inner and outer of the tube of endoscopes in the same time, high-pressure cleaning with cleaning liquid, high-pressure fulling with cleaning-water, high-pressure fulling with non-germ water, disinfecting and sterilizing with disinfector liquid, and thermal cool wind drying. |
Indication of over-temperature, over-voltage, over-current and shunt protection. |
Indication of low level, no liquid and shunt protection in the cleaning tank. |
Adopting digital smart software for the operation procedure. |
Adopting the best-quality stainless-steel for the inner and outer shell. |
|
Cleaning process : |
|
|
Put endoscopes into the cleaning tank---connect the cleaning tubes with endoscopes ----close the electrical-control lower-noise cover--- press P1-P7 key---auto infusion of cleaning water---auto heating---auto rough watering for inner and outer of endoscopes---auto drain sewage---auto supplying available polypeptidase liquid---auto heating---auto cleaning for inner and outer of endoscopes---auto filer and recovery---auto infusion of cleaning water---auto heating ---auto fulling for inner and outer of endoscopes---auto drain sewage---auto infusion of non-germ water---auto heating---auto fulling for inner and outer of endoscopes---auto drain sewage--- auto infusion of non-germ water---auto heating---auto fulling for inner and outer of endoscopes---auto drain sewage---auto infusion of disinfecting liquid---auto heating---auto disinfecting for inner and outer of endoscopes---auto drain sewage---auto thermal wind drying---auto stable temperature drying---auto cool wind drying---auto alarm and open the lower-noise cover |
| |
|
Main Technological Data: |
| Model |
Outer Dimension |
Inner Dimension of Cleaning Tank |
Capa
-city |
flow pressure |
heating power of clean
-ing
water |
heat
-ing power of
liquid |
heating power of non-germ water |
drying heating power |
tempe
-rature
scope |
time scope |
adjustable supplying-liquid quantity |
Cleaning item |
cleaning quantity each time |
Price
(FOB NING
BO
USD) |
| LxWxH(mm) |
LxWxH(mm) |
(L) |
(Mpa) |
(W) |
(W) |
(W) |
(W) |
(¡ãC) |
(min) |
(g) |
piece |
| KQ-A1200SRJ |
1400x650x1000 |
1200x100x150 |
18 |
0.1-0.8 |
2000 |
2000 |
2000 |
500 |
20-80 |
1-480 |
1-999 |
trachea
set |
1 |
16974 |
| KQ-A1200SRJ.A |
1400x650x1000 |
1200x100x250 |
30 |
0.1-0.8 |
2000 |
2000 |
2000 |
500 |
20-80 |
1-480 |
1-999 |
trachea
set |
2 |
20664 |
| KQ-A1600SRJ |
1800x650x1000 |
1600x100x150 |
24 |
0.1-0.8 |
3000 |
3000 |
3000 |
1000 |
20-80 |
1-480 |
1-999 |
stomach set |
1 |
18204 |
| KQ-A1600SRJ.A |
1800x650x1000 |
1600x100x250 |
40 |
0.1-0.8 |
3000 |
3000 |
3000 |
1000 |
20-80 |
1-480 |
1-999 |
stomach set |
2 |
21894 |
| KQ-A2000SRJ |
2200x650x1000 |
2000x100x150 |
30 |
0.1-0.8 |
4000 |
4000 |
4000 |
1500 |
20-80 |
1-480 |
1-999 |
rectoscopy set |
1 |
19434 |
| KQ-A2000SRJ.A |
2200x650x1000 |
2000x100x250 |
50 |
0.1-0.8 |
4000 |
4000 |
4000 |
1500 |
20-80 |
1-480 |
1-999 |
rectoscopy set |
2 |
23124 | | |
|
The product information will probably be updated without notice, if that happens, please refer to the latest technical material. |
|
  |
|
|
