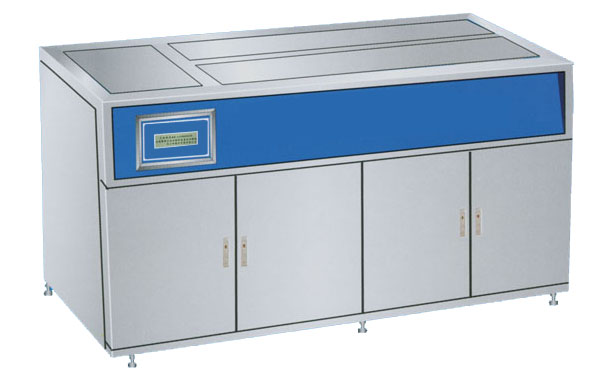

Series Digital Full-Automatic Ultrasonic Washer Disinfector For Rigid Endoscopes
 |
With the development and improvement of rigid endoscopes technology, the rigid endoscopes are widely used gradually. Rigid endoscopes can be used not only to diagnose, but also to be the tool for surgical department. But the widen usage of endoscopes brings too many infection problems, especially for AIDS and hepatitis virus.
According to these features of hospital, this appliance is designed completely in a cleaning tank, in which, only needing 30 minutes, it deals with seven processes for the inner and outer of tube of the endoscopes: Ultrasonic rough watering with cleaning water for inner and outer of the tube of endoscopes, cleaning with cleaning liquid, fulling with cleaning-water, fulling with non-germ water, dipping-oil and boiling for the instruments, disinfecting and sterilizing with disinfector liquid, and thermal heating and cool wind drying. It has 7 stable programs for the user's selection and 1 special program for user's setting, and is mainly available for hospital¡¯s laparoscopy set, arthroscopy set, ventriculography set, urethro cystoscopy set, hysteroscopy set, laringoscope set with radioactivity, contamination for cleaning, sterilizing and disinfecting requirements. It is the essential instrument in endoscopes room of the hospital. |
| |
|
|
Main Function : |
|
 High-pressure flowing for ultrasonic cleaning, dipping-oil, boiling, and disinfecting. |
Inner and outer of tube can be cleaned together with ultrasonic cleaning, dipping-oil, boiling and disinfecting. |
Ultrasonic cleaning can improve the quality and speed of cleaning, dipping oil, boiling and disinfecting.
|
The instrument has no any remain after ultrasonic cleaning, dipping oil, boiling and disinfecting. |
Full automatic and seal circumstance of ultrasonic cleaning, dipping oil, boiling and disinfecting ensures that no any discharge of waste.
|
The professionall ultrasonic polypeptidase liquid and anti-rust oil protection liquid can be recovered automatically.
|
Press setting key, you can finish the cleaning, dipping oil, boiling and disinfecting you needs. |
Digital indication of equipment¡¯s manufacturing date, serial number, using date, and add-up working time. |
Indication of the equipment¡¯s operation procedure and main technical specifications. |
The equipment has 7 fixed programs for your selecting, and a special program for setting by yourself. |
Press the key of O, the equipment will auto-clean all inner chambers of itself. |
Indication of each procedure of function setting and running course. |
Indicating the running state of high-pressure rough watering with flow cleaning water for inner and outer of the tube of endoscopes in the same time, high-pressure cleaning with cleaning liquid, high-pressure fulling with cleaning-water, high-pressure fulling with non-germ water, disinfecting and sterilizing with disinfector liquid, and thermal heating and cool wind drying. |
Indication of over-temperature, over-voltage, over-current and shunt protection. |
Indication of low level, no liquid and shunt protection in the cleaning tank. |
Adopting digital smart software for the operation procedure. |
Adopting the best-quality stainless-steel for the inner and outer shell. |
|
Cleaning process : |
|
|
Put endoscopes into the cleaning tank---connect the ultrasonic cleaning tubes with endoscopes ----close the electrical-control lower-noise cover--- press P1-P7 key---auto infusion of cleaning water---auto heating---auto ultrasonic rough watering for inner and outer of endoscopes---auto drain sewage---auto supplying available polypeptidase liquid---auto heating---auto ultrasonic cleaning for inner and outer of endoscopes---auto drain sewage---auto infusion of cleaning water---auto heating ---auto ultrasonic fulling for inner and outer of endoscopes---auto drain sewage---auto infusion of non-germ water---auto heating---auto ultrasonic fulling for inner and outer of endoscopes---auto drain sewage--- auto supplying anti-rust oil ---ultrasonic dipping-oil, boiling and disinfecting---auto drain sewage--- auto thermal wind drying---auto stable temperature drying---auto cool wind drying---auto alarm---auto open the lower-noise cover |
| |
|
Main Technological Data: |
| Model |
Outer Dimension |
Inner Dimension
of
Cleaning Tank |
Cap
-acity |
Ultra
-sonic Freq
- uency |
Ultrasonic Power |
heating power of cleaning water |
heating power of non-germ water |
drying heating power |
tempe
-rature
scope |
time scope |
adjus
-table supp
-lying
-liquid quantity |
Cleaning item |
Price
(FOB
NING
BO
USD) |
| LxWxH(mm) |
LxWxH(mm) |
(L) |
(KHz) |
(W) |
(W) |
(W) |
(W) |
(¡ãC) |
(min) |
(g) |
| KQ-B1000SYJ |
1120x540x900 |
600x300x288 |
52 |
40 |
1000 |
5000 |
5000 |
3000 |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
18327 |
| KQ-B1000SYJ.D |
1120x540x900 |
600x300x288 |
52 |
40 |
1000 |
outer connection with steam |
outer connection with steam |
outer connection with steam |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
19311 |
| KQ-B1300SYJ |
1120x640x900 |
600x400x288 |
69 |
40 |
1300 |
6000 |
6000 |
4000 |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
20787 |
| KQ-B1300SYJ.D |
1120x640x900 |
600x400x288 |
69 |
40 |
1300 |
outer connection with steam |
outer connection with steam |
outer connection with steam |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
21771 |
| KQ-B1700SYJ |
1120x740x900 |
600x500x288 |
86 |
40 |
1700 |
7000 |
7000 |
5000 |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
22017 |
| KQ-B1700SYJ.D |
1120x740x900 |
600x500x288 |
86 |
40 |
1700 |
outer connection with steam |
outer connection with steam |
outer connection with steam |
20-95 |
1-480 |
1-1000 |
rigid endoscopes |
23001 | | |
|
The product information will probably be updated without notice, if that happens, please refer to the latest technical material. |
|
  |
|
|
