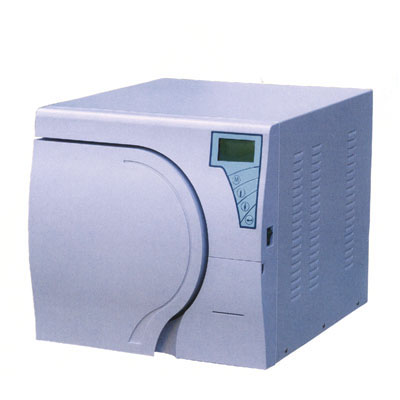

     Tabletop Steam Autoclaves    18L
CLASS B-MJQ17-18 FULL-AUTOMATICALLY OPERATION

Model
Voltage
Power
Volume
Chamber siae
Packing size
Weight
V/Hz
W
L
mm
mm
kg
MJQ17-18
220/50
2000
18
φ250x355
710x630x680
74N.W.54

It adopts European B standard, with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%. Vacuum measurement reaches ?0.70bar. It sterilizes and sanitizes miscellaneous packed or unpacked medical instruments, whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently rid air from every hollow area of any hollow instrument, such as hand-piece, making sure that water steam reaches every corner. It is installed with BOWIC& DICK which measures the penetration of water steam. Mini printer can be attached to record the process of sterilization.


技术参数:
型号:MJQ17-18
容积:                     18升
灭菌温度:                121℃,134℃
可选程序:                7个
特殊灭菌:                灭活艾滋(HV)、乙肝(HBV)、疯牛病毒及芽孢
干燥程序:                强力真空干燥
显示:                    宽屏液晶,多种语言菜单
测试:                    Bowie&Dick测试,Leak测试
灭菌记录:                可选配微型打印机进行灭菌记录
安全性:                  电控门,安全阀,双门锁,双重超温超压自动保护,故障自检
供水系统:                内置净、污双水箱
灭菌室配制:              3~5层活动托盘
电源/频率:               220VAC±10%/50HZ
输入功率:                2000VA
内腔尺寸:                F250mm*355mm
净重:                    54Kg
毛重:                     70Kg
外形尺寸(长×宽×高):     570×480×445mm
包装尺寸(长×宽×高):     710×630×680mm


Technical support:
Model:MJQ17-18
Capacity:            18 liters
Sterilizing temperature: 121℃,134℃
Dry program:         Vacuum drying
Display:             LCD,multi languages
Test:                Bowie&Dick,Leak
Sterilizing record:      There is a micro-printer inside,recording the whole process of sterilizing
Safety Features:       Electric door lock,Pressure Release Valve, Dual Over temperature over pressure Auto protection and failure post
Water supply system:   Inside two water tanks(clean and dirty)
Chamber dish:         3~5tray
Voltage/frequency:     220VAC±10%/50HZ
Input power:          2000VA
Chamber size:         F250mm*355mm
Net Weight:           54Kg
Gross Weight:           70Kg
Outside size (L×W×H):    570×480×445mm
Packing size(L×W×H):    710×630×680mm


灭菌模式说明:


程序
温度(℃)
压力(bar)
灭菌时间(分)
工作总时间
(分)
装载物品
最大装载量(kg)
134℃POROUS
134
2.10
4
30~45
不包装的多孔物品
1.00
包装的多孔物品
0.65
单层包装的实心或空心物品
3.00
双层包装的实心或空心物品
1.50
121℃POROUS
121
1.10
20
45~60
不包装的多孔物品
1.00
包装的多孔物品
0.65
单层包装的实心或空心物品
3.00
双层包装的实心或空心物品
1.5
134℃PRION
134
2.10
18
45~60
不包装的多孔物品
1.00
包装的多孔物品
0.65
单层包装的实心或空心物品
3.00
双层包装的实心或空心物品
1.5
134℃HOLLOW
134
2.10
4
25~40
不包装的中空物品
6.00
121℃HOLLOW
121
1.10
20
35~50
不包装的中空物品
6.00
134℃SOLID
134
2.10
4
15~30
不包装的实心物品
6.00
121℃SOLID
121
1.10
20
30~45
不包装的实心物品
6.00































灭菌器技术优势:
1、采用原装进口水泵 Pump from Italy
进液精确、噪音低、工作稳定。
2、采用原装进口电磁阀 Solenoid valve from parker
动作灵敏、密封良好、工作稳定。
3、采用蒸汽发生器装置 Steam generator
该装置将蒸馏水恒定、分散、喷射到快速发热体上,让其快速汽化,从而形成水蒸汽。该装置具有多方向均匀喷射,立体杀菌,节能,快速且可以精确定量控制,灭菌时间更短,灭菌更安全有效。
4、采用优质的器械盘架Instrument frame
用不锈钢细管做成的器械盘架轻便耐用,增加了灭菌物品数量。此器械盘架更大的好处在于能达到更好的烘干效果,能更彻底地达到干燥。
5、采用全自动门锁机构 Door structure
全自动门锁机构,您不用费力去拧门锁,您也不用再为门是否已经锁紧而担心,一切都交给我们,您只需轻轻一按。
6、采用优质进口SUS304不锈钢灭菌腔体 Sterilizer pot
采用不锈钢整体拉伸成型,表面经过特殊工艺处理,形成一个光洁、精密的保护层。让您拥有一个光亮可见的洁净空间,您不用再担心恼人的锈斑影响您的器械。
7、采用电脑控制系统 Computer control system
采用模糊控制系统,时刻感受灭菌室里每一点的变化,精确控制压力和温度,给您的器械最精心的呵护,您不用再担心不稳定的温度会对您的器械造成伤害。其中采用了日本林电工高品质温度传感器芯片和摩托罗拉(Motorola)公司精密级压力传感器。
8、采用优质真空泵 Vacuum pump
采用中德技术,真空度最高可达-0.9bar,不论多小的细孔,内部的空气都将被完全抽出,高温蒸汽可渗透到器械的每个角落。无论是灭菌还是烘干,您都没什么可担心的了。




The product information will probably be updated without notice, if that happens, please refer to the latest technical material.
