ZMSX-50 50L

ZMSX-150 150L

ZMSX-200 200L

ZMSX-300 300L

ZMSX-400 400L

ZMSX-500 500L

ZMSX-800 800L

ZMSX-1000 1000L

ZMSX-1500 1500L

ZMSX-2000 2000L

Structure features:

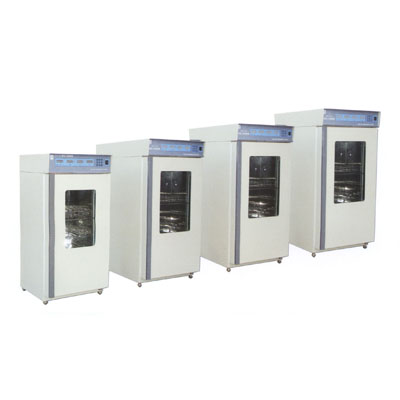

ZMSX-series epoxyethane sterilization cabinet is well ddsigned and produced,which mainly consists of three parts:
1. Measuring-Control System: computer,power monitor,operation key and pressure/temperature transducer.
2. Imported stainless steel vacuum chamber and residual gas processor(processed with argon arc welding)
3. Vacuum Forming System and Aerosol Delivery System
Computer-based management and control of all the technical parameters ensure the sterilizing process more accurate and reliable.The outstanding advantages of sterilizing gas mixture include low toxicity,high sterilizing efficacy and broad spectrum,potent penetration,quick sterilizing,no corrosion or residual toxicity to sterilizing articles,no environmental pollution and reliable safety,In all,this product series can be regarded as the most advanced epoxyethane sterilization equipment in domestic market at current time.
Major technical parameters:
Working chamber volume:50L,150L,200L,300L,400L,500L,800L, 1 cubic meter,1.5 cubic meters, 2 cubic meters
Working chamber temperature:room temperature ∼100^oC
Preision of temperature Control: ±0.5^oC
Temperature distribution: ±2^oC
Vacuum pressure:0∼-80kpa
Sterilizing time:3-9 hours
Time control range:0-9 hours
Ventilation frequency: random       time:random
Operating Voltage:220V±10%50HZ
Power:50L,1.2KVA; 150L, 2.4KVA; 200L,2.8KVA; 300L,3.6KVA; 400L,3.6KVA;500L,4KVA; 800L,4KVA; 1 cubic meter, 6KVA; 1.5 cubic meter, 8KVA; 2 cubic meter,10KVA.
