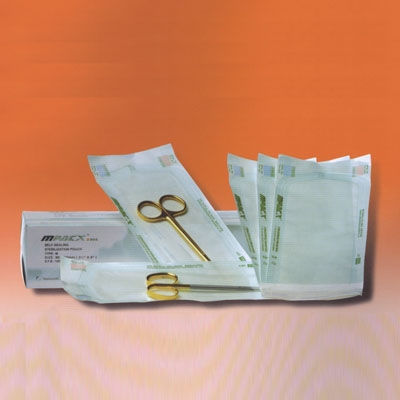

The usage illustration of the self-sealing flat pouches

The usage:
1. To choose the proper sizes pouches as per the size the equipment’s to be sterilized. And then put the clean and dry equipment into the pouches. The equipment should be less than 3/4 of the sizes of the pouches to ensure the seal successfully and avoid the break of the pouches.
2. Make the acuate edge of the equipment to be contrary to the peeling direction, during putting the acuate equipment in to the pouches.
3. Tear the stick indicating paper and put it into the pouches. Stick and close the pouches, marking the detailed informations, such as the sterilization date, the equipment name and the usage etc.
4. Put the closed pouches into the steam clave or ETO sterilizer, according to the rule to let the pouches’ paper side against paper side, and then do the sterilization as per the normal methods.
5. To identify the situation of indicator’s color change: if sterilization proceeded, it will turn black from initial blue based on steam sterilization method, and will turn brown from initial pink based on the ETO sterilization method.
6. Store the sterilized pouches dry, clean and dark-light place.
7. Tear the pouches as per the peeling direction and put the sterilized equipment out.

The notes:
1. The valid period will be 6 months on the steam sterilization method basis.And will be 24 months on the ETO sterilization methods basis.
2. do not use if pack is damaged.

NO.	TYPE	GOODS NO.	SIZE WXL (mm)	SIZE OF OVER-WRAPPED WXL(mm)	SIZE OF BOX	SIZE OF CARTON	(G.W./CARTON)	(M3)/CARTON	PCS/BOX	BOX/CARTON	PCS/CARTON
101	S	1057100	57X100	57X135	60X140X50	38X30X26	14.00	0.0296	200	60	12000
106	M	1090230	90X230	90X265	93X270X50	38X30X26	14.40	0.0296	200	20	4000
112	L	1135255	135X255	135X290	138X295X50	43X30X26	17.26	0.0335	200	15	3000
117	XL	1190330	190X330	190X365	193X370X50	38X30X26	14.62	0.0296	200	7	1400
122	XXL	1250370	250X370	250X405	253X410X50	43X30X26	15.16	0.0335	200	5	1000
