H2O2 Low Temperature Plasma Sterilizer
Product introduction
The Plasma sterilizer takes H2O2 as sterilizing agent and form plasmatic state of H2O2 by electromagnetic field under low temperature. It combines both gaseous and plasmatic H2O2 to make sterilization for the items in chamber and decomposes the residual H2O2 after sterilization.
It is widely used in CSSD or other medical institute for the sterilization of electric wire and cable, optical glasses and glass lens, power equipment and batteries, endoscopes catheter nonmetallic and other wet or heat sensitive instruments.
Scope of application
The sterilizer is applicable to sterilize the medical instruments that are thermolabile or non-moisturetight. It is not applicable to the sterilization of liquid, powder or cotton fabrics. All the medical instruments that meet the following conditions can be processed by this sterilizer:
PS-100
- Metal tubular instrument: inner diameterz1mm: lenaths500mm
- Nonmetal tubular instrument: inner diameterz1mm: lenaths2000mm
Product features
l Low temperature sterilization
The sterilization temperature is 50±5¡æ which is much lower than steam sterilization. It is dry sterilization that has no harm on instrument, so it extends the device service life.
l Safe and environment friendly
The matter after sterilization is water and oxygen molecule that have no toxic harm to staff or patient, and there is no need for drainage or air exhausting. High efficient H2O2 filter is installed in the exhausting outlet to guarantee no H2O2 pollution to the environment.
l Time-saving and cost-efficient
Rectangular chamber has greater capacity, high efficiency and short sterilizing cycle(<50mins). The sterilized articles can be used directly without extra processing. It can increase the instrument turnover and decrease the storage of precious instrument to cut cost indirectly.
l Convenient
Only power supply is needed for installation. The system adopts man-machine control interface with intelligent program design. Equipped with foot switch (alternative) and integrated biological incubator (alternative).
l Multiple models
The door structure of the sterilizer is customizable(single or double door). To meet pharmaceutical factory needs, chamber material can be stainless steel.
l Reliable sterilization
The chamber adopts alloy material which has good thermal conductivity to guarantee a stable temperature in the chamber. The purification system makes the H2O2 diffuses uniformly. The low temperature storage system provides a stable concentration of H2O2.
l Safe sealing door
The sterilizer adopts mandril-driving auto overhead door with reliable sealing function and safe lock device to guarantee personal safety
l Data management
The 2048M storage (alternative)can store original data for inquiring Mini printer can be used to print operation data timely. There are two types of record methods to guarantee the data is 100% acquirable.
l Advanced confiquration
The vacuum pump, controller, pressure transmitter and other key components are world famous brand.
The sterilizer equipped with multiple programs and bar code identification system(alternative).
l Reassuring
We provide comprehensive operation training materials to key components maintenance intelligent reminding system for your convenience.
Alternative configuration

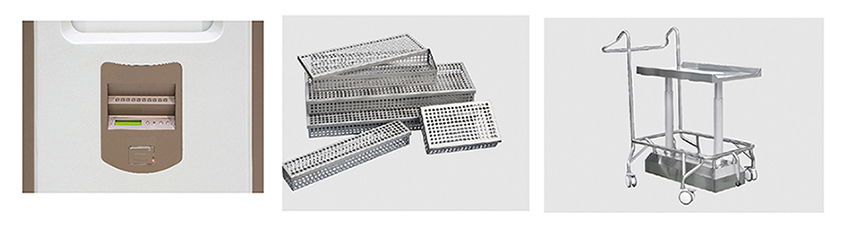

l USB flash disk storage
Timely sterilizing information storage to guarantee all data can be safely stored and traced during the sterilizer service life. This configuration can also be updated to traceability system.
l Integrated biological incubator
The biological incubator will timely display temperature and incubate time. It equipped with independent control system that could work in the case of the sterilizer switched off.
l Foot switch
Simply kick the switch to open or close the door.
l Alloy storage rack
The alloy storage rack realizes that sterilized articles can be separately stored.
l Metallic sterilizing container
To improve sterilizing result, we provide various sterilizing container for different kinds of instruments and operation kits.
l Auto elevating trolley
The trolley equipped with auto elevating platform, chargeable lithium battery. The convenient memory function could record three different positions.
Overall dimensions(LXWXH)mm: 1150X780X1165
|
